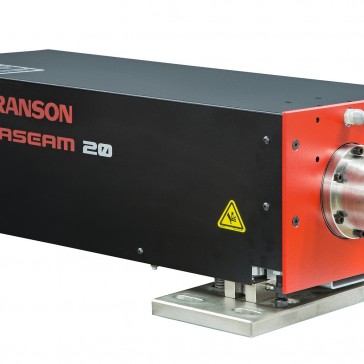

Branson Ultraseam20 Seam Welder

The Ultraseam20 is the ultimate metal seam welder - ideal for continuous welding of aluminum and copper foils at speeds up to 22 meters per minute. It uses ultrasonic energy for low cost, clean, and efficient operation. Tool life can exceed one million meters of weld.

Availability: Estimated delivery time 2-3 weeks


Additional Info

Additional Info

Country of Manufacture
Miscellaneous Brands Branson
Miscellaneous Products Ultrasonic Welding
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products


this product has no accessories products




  • Actuation: Pneumatic
  • Cooling System: Air
  • Data Interface: USB, Ethernet
  • Frequency: 20kHz
  • Input Power: 200-250V, 50/60 Hz
  • Output Power: 4000W
  • Overall Dimensions: H203mm x W362mm x L578mm
  • Pneumatics Type: 5.5 bar (80 psi) clean, dry air
  • Special Feature: Password protection
  • User Interface: Touchscreen, LCD


  • True metallurgic bonds provide excellent heat transfers.
  • All mechanical process - no electrical current passes through the work piece and no melting occurs
  • Ideal for welding similar or dissimilar electrical grade alloys and nonferrous metals of varying thicknesses
  • Lowest cost per weld compared to fusion methods for metal joining
  • Superior tool life
  • Welding variables can be precisely monitored and controlled providing consistent results and SPC capabilities
  • Energy efficient
  • Easy to set up and operate
