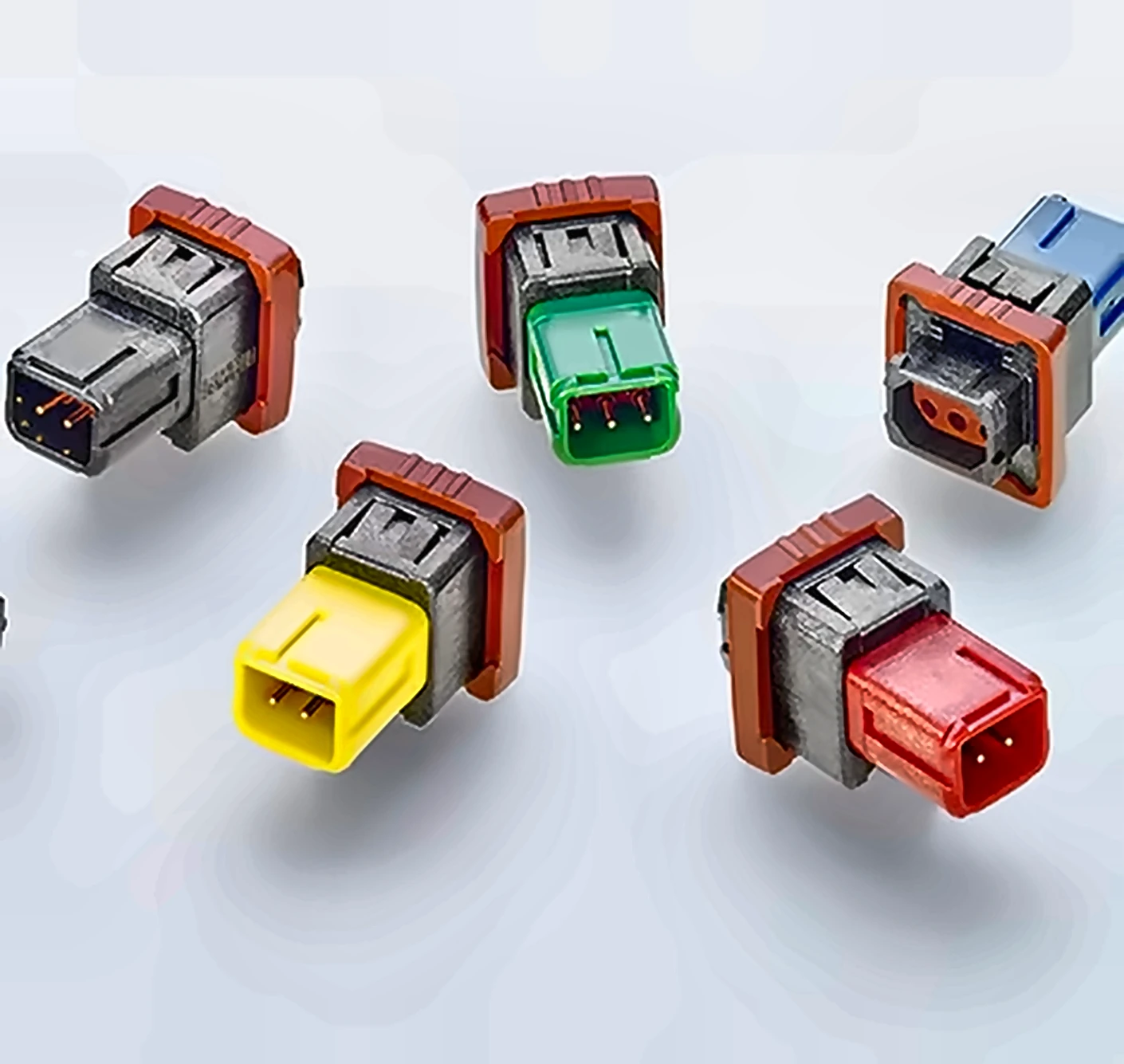

Deutsch ConnectorsThe complete sealed connector program
From the general-purpose DT series to high-density DRC and heavy-duty HD30 and HDP20 power connectors. 1,794 sealed DEUTSCH parts stocked in the Nordics, with the contacts, wedgelocks and crimp tools to match.
16 connector series to choose from
Each card below is a complete DEUTSCH series, not a single product, from the general-purpose DT series to high-density DRC and heavy-duty HD power connectors. Select a series to filter the 1,794 parts in the catalogue below; the count on each card shows how many parts it holds.
DT431 productsDT Series
The industry workhorse, IP67 sealed.
- Contact size 16 (13 A)
- 14–20 AWG
HD30388 productsHD30 Series
Heavy-duty circular connectors for demanding industrial wiring.
- Contact sizes 4 (100 A) through 20 (7.5 A)
- 6–22 AWG

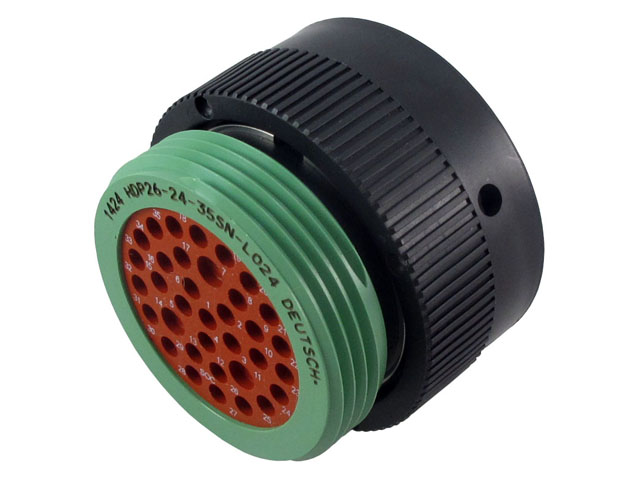

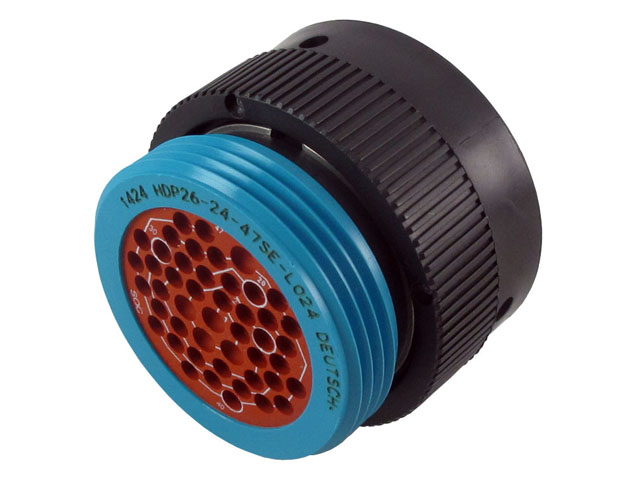

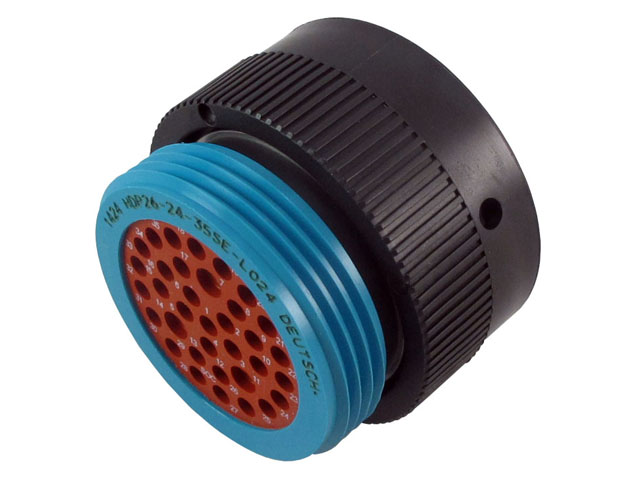

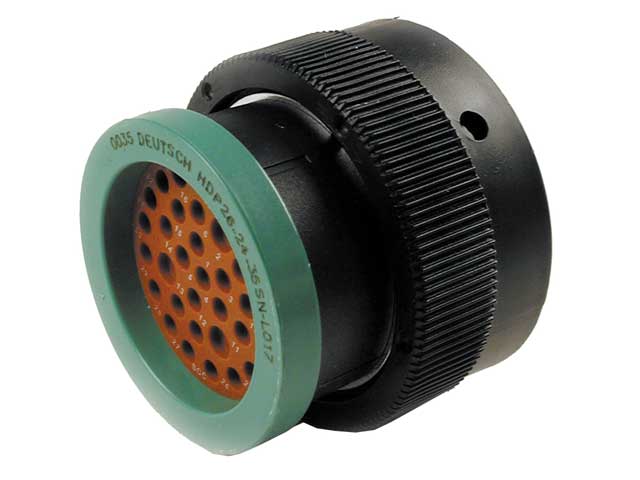

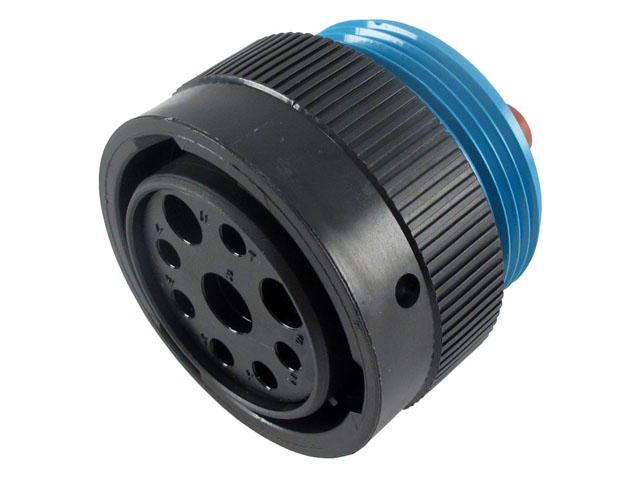

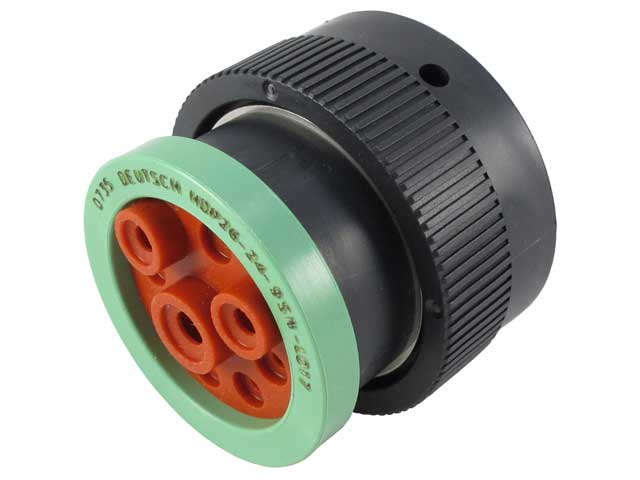

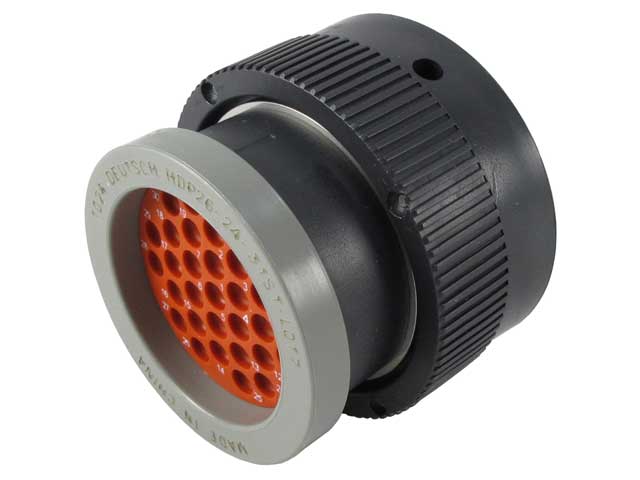

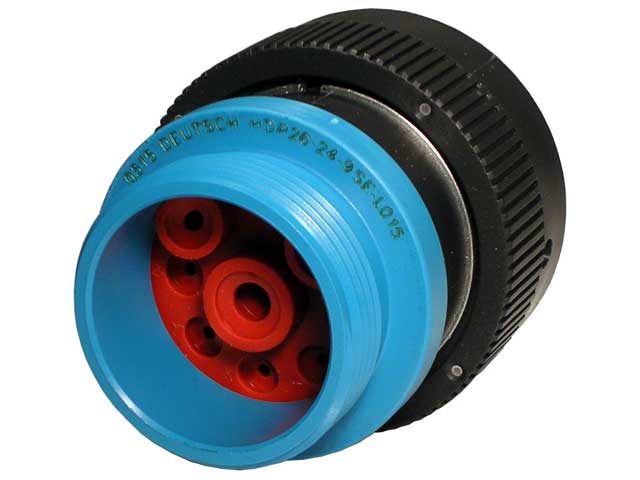

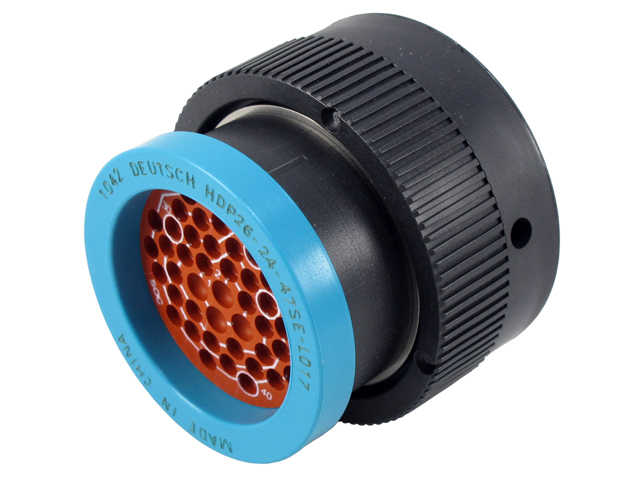

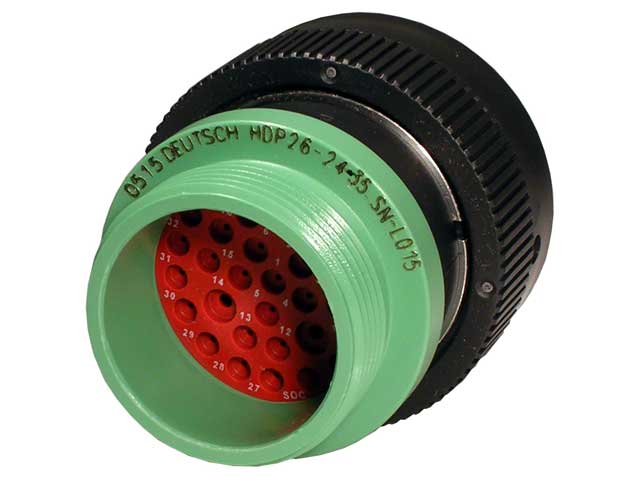

HDP20313 productsHDP20 Series
Large heavy-duty power connectors with high contact counts.
- Contact sizes 4 (100 A) through 20 (7.5 A)
- 4–22 AWG
DRC139 productsDRC Series
High-density sealed connectors for harsh environments.
- Contact sizes 16 (13 A) & 20 (7.5 A)
- 14–22 AWG
AMPSEAL130 productsAMPSEAL Series
Sealed connectors for demanding automotive and transportation wiring.
AMPSEAL 16129 productsAMPSEAL 16 Series
Compact sealed connectors for higher-density signal circuits.
DTM115 productsDTM Series
Miniature sealed connectors for compact circuits.
- Contact size 20 (7.5 A)
- 16–22 AWG
HD1050 productsHD10 Series
Rugged circular connectors for harsh-environment power and signal.
- Contact sizes 4 (100 A), 12 (25 A) & 16 (13 A)
- 6–20 AWG
DTP26 productsDTP Series
High-current power connectors.
- Contact size 12 (25 A)
- 10–14 AWG
DRB22 productsDRB Series
High-density sealed connectors with up to 128 cavities.
- Contact sizes 4 (100 A) through 20 (7.5 A)
- 6–22 AWG
DTHD14 productsDTHD Series
Single-cavity DT connectors for high-current power.
- Contact sizes 4 (100 A), 8 (60 A) & 12 (25 A)
- 6–14 AWG
AEC12 productsAEC Series
High-density sealed connector series.
- Contact size 16 (13 A)
- 14–20 AWG
DTV8 productsDTV Series
Flange-mount DT-family connector.
- Contact size 16 (13 A)
- 14–20 AWG

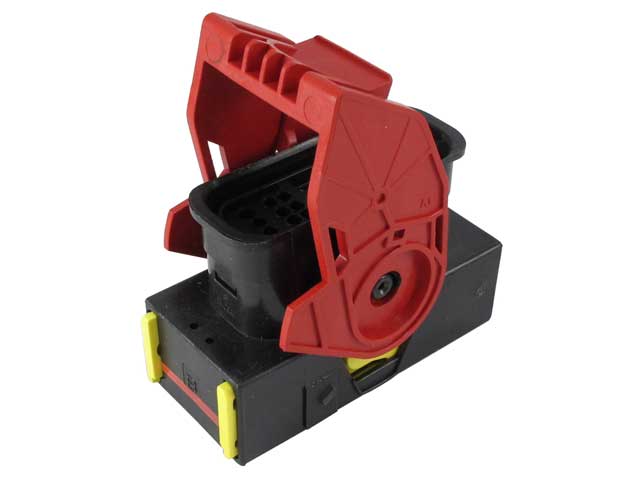

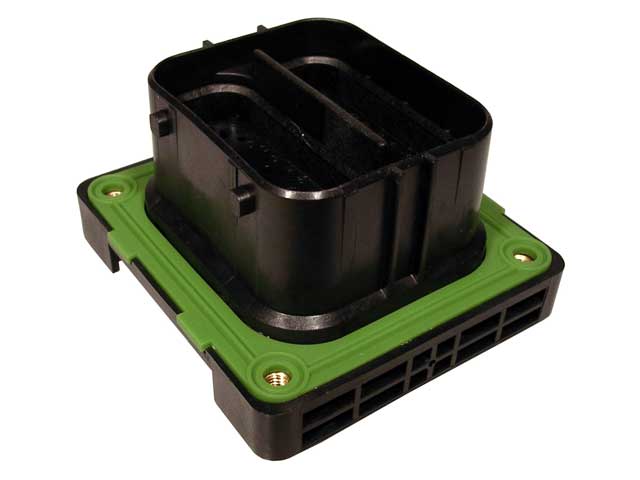

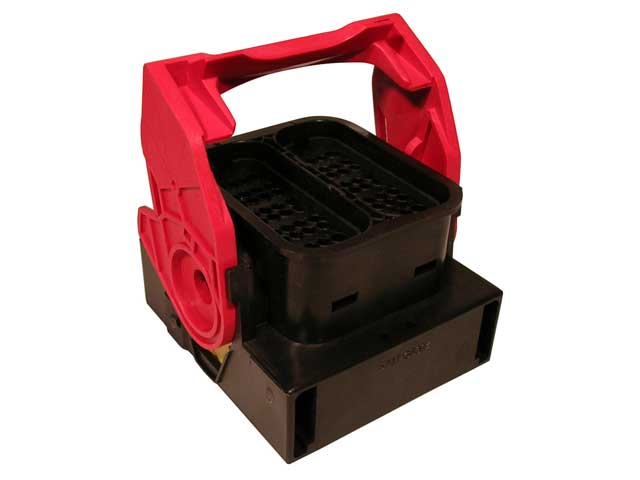

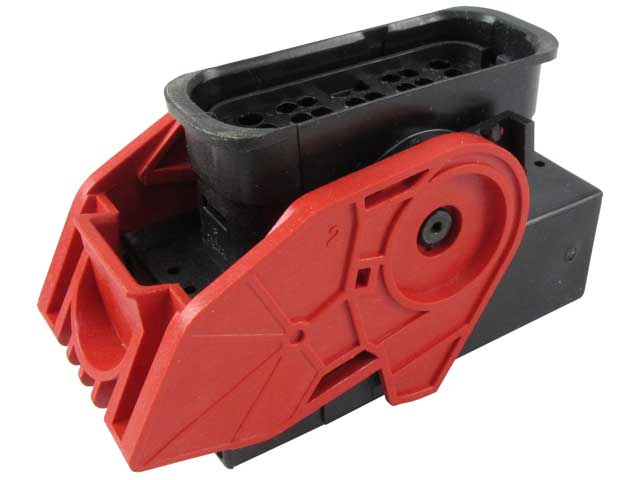

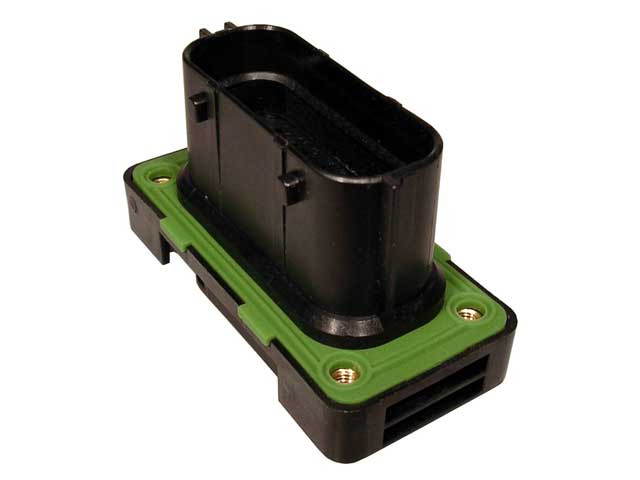

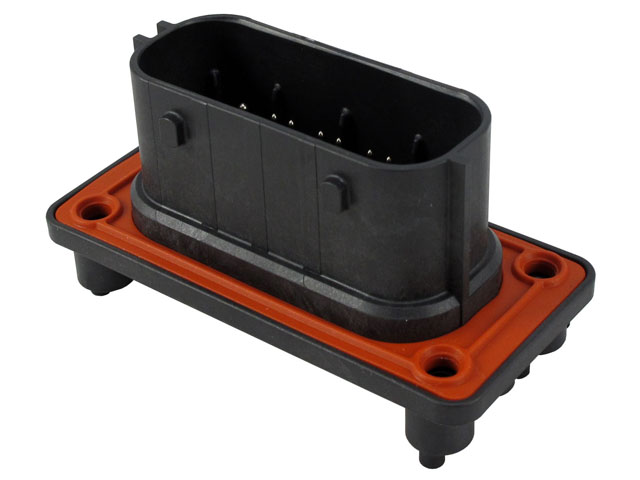

STRIKE8 productsSTRIKE Series
High-density sealed connectors, 32 and 64 cavities.
- Contact sizes 16 (13 A) & 20 (7.5 A)
- 14–20 AWG
EEC6 productsEEC
Header connectors that accept DT and DTM interfaces.
- Through-hole mounting flange on each side
- Headers accept one or more DT/DTM interfaces

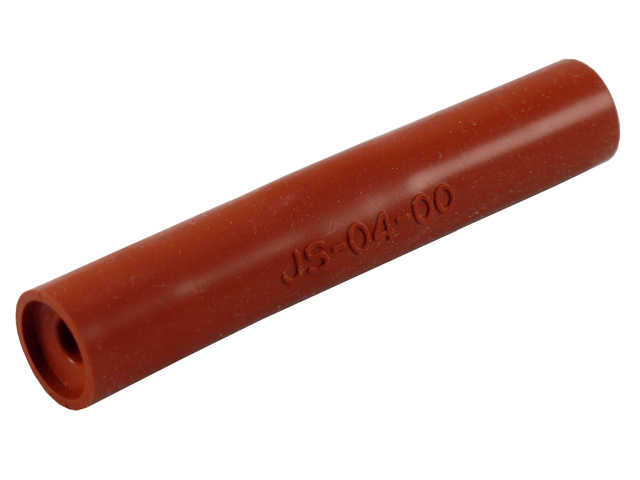

Jiffy Splice3 productsJiffy Splice
Sealed in-line splice connectors for field wiring.
- Contact sizes 4 (100 A), 12 (25 A) & 16 (13 A)
- 6–20 AWG
Contacts and terminals
All Deutsch DT/DTM series use size-16 contacts. DTP and high-current AT series use size-12 contacts. Contacts are sold separately from housings, choose the wire gauge that matches your application.
Browse all 99 Deutsch contacts in the webshop

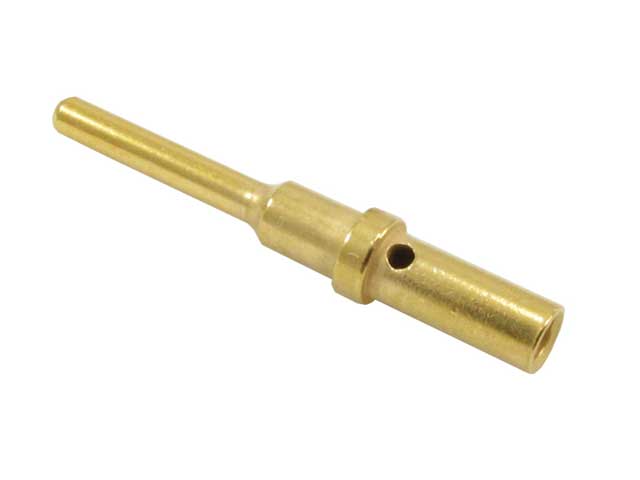

Size 16 contacts, DT / DTM / AT series (12 A)
| Part number | Type | Plating | Wire range | Max temp | Quote |
|---|---|---|---|---|---|
| 0460-202-16141 | Socket contact | Gold | 0.50–1.00 mm² (AWG 20–18) | +125 °C | RFQ → |
| 0460-215-16141 | Socket contact | Gold | 1.00–2.00 mm² (AWG 18–14) | +125 °C | RFQ → |
| 0462-201-16141 | Pin contact | Gold | 0.50–1.00 mm² (AWG 20–18) | +125 °C | RFQ → |
| 0462-209-16141 | Pin contact | Gold | 1.00–2.00 mm² (AWG 18–14) | +125 °C | RFQ → |
| 0460-202-1631 | Socket contact | Tin | 0.50–1.00 mm² (AWG 20–18) | +105 °C | RFQ → |
| 0462-201-1631 | Pin contact | Tin | 0.50–1.00 mm² (AWG 20–18) | +105 °C | RFQ → |

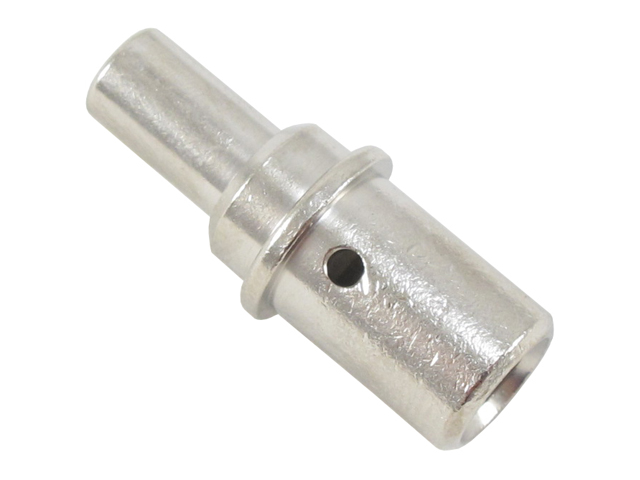

Size 12 contacts, DTP / AT high-current (25 A)
Crimping note
Deutsch contacts must be crimped, they cannot be soldered. Use the HDT-48-00 hand crimp tool for size 16, or HDP-20 for size 12. For production volumes, a Mecal or Zoller & Fröhlich applicator on a bench press delivers the most consistent crimp quality. Contact Adcontact for tooling recommendations.
Accessories
Wedgelocks mechanically retain contacts and are required for IP67 sealing, always order them with your housings. Cavity plugs seal unused positions in the same housing.
Browse all 519 Deutsch accessories in the webshopWedgelocks
| Part number | Fits housing | Description | Quote |
|---|---|---|---|
| W2P | DT04-2P | 2-way plug wedgelock, locks contacts in place | RFQ → |
| W3P | DT04-3P | 3-way plug wedgelock | RFQ → |
| W4P | DT04-4P | 4-way plug wedgelock | RFQ → |
| W6P | DT04-6P | 6-way plug wedgelock | RFQ → |
| W8P | DT04-8P | 8-way plug wedgelock | RFQ → |
| W12P | DT04-12PA | 12-way plug wedgelock | RFQ → |
| W2S | DT06-2S | 2-way socket wedgelock | RFQ → |
| W3S | DT06-3S | 3-way socket wedgelock | RFQ → |
| W4S | DT06-4S | 4-way socket wedgelock | RFQ → |
| W6S | DT06-6S | 6-way socket wedgelock | RFQ → |
| W8S | DT06-8S | 8-way socket wedgelock | RFQ → |
| W12S | DT06-12SA | 12-way socket wedgelock | RFQ → |
Wire seals and cavity plugs
| Part number | Type | For | Description | Quote |
|---|---|---|---|---|
| 114017 | Cavity plug | DT (size 16) | Cavity plug for unused size-16 positions, IP67 maintained | RFQ → |
| W-HS-16 | Cavity plug | DT / DTM (size 16) | Cavity plug for size 16 contacts, seals empty cavities | RFQ → |
| 7165-2193-30 | Seal kit | DT Series | Loose-piece wire seal, size 16, for 0.75–1.5 mm² wire OD | RFQ → |
| 7165-2186-30 | Seal kit | DT Series | Loose-piece wire seal, size 16, for 2.0–3.0 mm² wire OD | RFQ → |
Dust covers and backshells
| Part number | Type | Fits | Description | Quote |
|---|---|---|---|---|
| 2511-0151 | Dust cover | DT04-2P | Protective plug dust cover, storage and transport | RFQ → |
| 2511-0152 | Dust cover | DT04-4P | Protective plug dust cover, 4-way | RFQ → |
| 2511-0153 | Dust cover | DT04-6P | Protective plug dust cover, 6-way | RFQ → |
| DRB-06-2S-E003 | Backshell | DT06-2S | 90° angled backshell for DT06-2S socket | RFQ → |
| DRB-06-6S | Backshell | DT06-6S | Straight backshell / cable clamp for 6-way socket | RFQ → |
Crimp tools and extraction tools
Deutsch contacts require the correct crimp tool to achieve the specified crimp quality. Using the wrong tool, or pliers, will result in a non-conforming crimp that cannot be detected visually. Always verify the contact size before selecting the tool.
Browse all 177 Deutsch tools in the webshopThe standard Deutsch crimp tool for size-16 contacts (pin and socket). Ratcheting mechanism, won't release until full crimp cycle is complete. Compatible with 0.5–2.0 mm² wire.
Dedicated ratcheting crimp tool for size-12 DTP power contacts. Covers 2.5–6.0 mm² wire gauges used with DTP series and AT large-contact variants.
Slim probe-style extraction tool for removing size-16 socket and pin contacts without damaging the housing. Use after releasing the wedgelock.
Dedicated extraction tool for DTP size-12 contacts. Required for safe removal without housing damage.
Applicator for use with Mecal or Z&F benchtop crimp presses. Produces consistent, production-grade crimps. For size-16 contacts at high volume.
Where Deutsch connectors are used
Deutsch connectors: frequently asked questions
Common questions from engineers and buyers specifying DEUTSCH DT, DTM, DTP and AT sealed connectors.
What is the difference between Deutsch DT, DTM and DTP connectors?
The DT series uses size 16 contacts rated 13 A and is the general-purpose workhorse, available in 2 to 12 way sizes. The DTM series is a miniature version with size 20 contacts rated 7.5 A for space-constrained, lower-current circuits. The DTP series uses size 12 contacts rated 25 A for high-current power connections. All three share the same IP67 sealing and wedgelock locking philosophy.
Are Deutsch connectors waterproof?
Yes. Deutsch DT, DTM, DTP and AT connectors are rated IP67 when mated, sealing against dust and temporary immersion in water to 1 metre for 30 minutes. Silicone wire seals and an interfacial seal keep them reliable from −55 °C to +125 °C, even under vibration.
Can Deutsch contacts be soldered?
No. Deutsch contacts are designed to be crimped, not soldered. Use the HDT-48-00 hand crimp tool for size 16 contacts and the HDP-20 for size 12 contacts. For production volumes, a bench-press applicator delivers the most consistent crimp quality.
What wire gauge do Deutsch DT connectors accept?
DT size 16 contacts accept 0.5–2.0 mm² (14–20 AWG) wire. DTM size 20 contacts suit 0.3–1.3 mm² (16–22 AWG), and DTP size 12 contacts handle 2.0–3.3 mm² (12–14 AWG). Contacts are ordered separately from housings so you can match the exact wire gauge.
Do Deutsch connectors need a wedgelock?
Yes. The wedgelock locks the contacts into the housing and is required to achieve full contact retention and the IP67 seal. Always order the matching plug (P) and socket (S) wedgelock for each housing, along with cavity plugs to seal any unused positions.
Is Adcontact a Deutsch connector distributor?
Adcontact is a Nordic stocking distributor of DEUTSCH connectors, holding the DT, DTM, DTP and AT housings, contacts, wedgelocks, seals and crimp tools in Bromma, Sweden, with technical support and fast quotations across Sweden, Finland, Norway, Denmark and Estonia.
Need a quote or technical help?
Our technical sales team in Bromma can advise on the right series, contact size, and tooling for your application. We stock the full DT, DTM, DTP, and AT ranges, including contacts, wedgelocks, and crimp tools.
