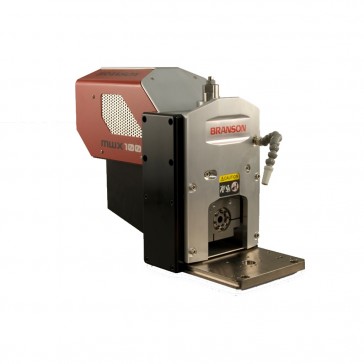

Branson MWX100 Spot Welder

Specifications

• Actuation: Pneumatic
• Cooling System: Air
• Data Interface: USB, Ethernet
• Frequency: 40kHz
• Input Power: 200-230V, 50/60 Hz
• Output Power: 400W, 800W
• Overall Dimensions: H363mm x W215mm x L432mm
• Pneumatics Type: 5.5 bar (80 psi) clean, dry air
• Special Feature: Password protection
• User Interface: Touchscreen, LCD
• Weld Modes: Time, Energy

Features

• Precision crossed-roller bearing slides to assure smooth operation and extreme accuracy
• Versatile frame available for table, gantry/overhead, or surface mount
• System can quickly be configured to adapt to various applications
• Precise adjustments for accurate setting of both upper and lower positive stops
• Conveniently located flow controls offering easy adjustment of head speed in both directions
• A polar mounted ultrasonic stack to facilitate setup and efficient transmission of ultrasonic energy to the horn
• Titanium horns with low cost replaceable tips, or solid tool steel horns, for fast setup and minimum tooling cost
• Increased head travel for ease of part loading and unloading. The MWX100 offers manufacturers the highest reliability at the lowest cost per weld.
