Ulmer Corrugated tube cutting machine WSM 60 ESB

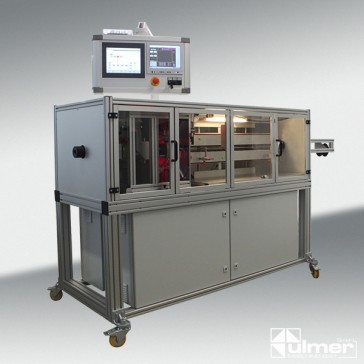

The corrugated tube cutting machine WSM 60 ESB is suitable to cut corrugated tubes on the wave crest or to cut tubes of special geometries in a burr-free procedure. The WSM 60 ESB was particularly designed to process tubes of special forms, as for example applied in the automotive industry, medical industry and white goods.

The WSM 60 ESB is also suitable to cut non-slitted corrugated tubes of 10 – 60 mm outer diameter. The cut is carried out in rotation mode, where the cutting blades turn continuously round the product to cut the material at the precise position at the specified length. Clamping jaws, which fixate and stabilise the tube during the cutting process, are additionally available and are selectable. Up to 3 clamping-jaw-forms can be applied and selected by means of the machines’ control panel.

The tube position is identified by a high-resolution camera system. Alternatively, standard corrugated tube material can be positioned by a laser light barrier.

For in-line-operation with an extrusion system, additional accessories such as discharge conveyor, jet air device etc., are available. The processing direction of the WSM 60 ESB can be from left to right as well as from right to left.

The WSM 60 ESB can optionally be fitted with a slitting unit, which is able to slit the standard corrugated tube longitudinally.
