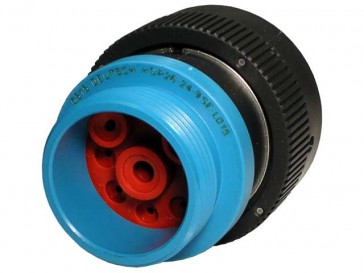

HDP26-24-9SE-L015

HDP26-24-9SE-L015

Availability: In stock

1

Additional Info

Additional Info

Series HDP20 Series
Brand Deutsch
No. of cavities 9
Part Number HDP26-24-9SE-L015
Flange/In-line/PCB Mount In-line
Modification Threaded Adapter
Shape Circular
Material Plastic
Connector Style Plug
Holds Pin/Socket Socket
Insulation (#4).261-.292 [6.63-7.42], (#8).135-.220 [3.43-5.59], (#12).097-.158 [2.46-4.01]
Wire Size 6, 8, 10, 14, 16, 18, 20
Shell Size 24 shell
Color Black

Contacts

0462-203-04141

7.8

0462-203-08141

5.88

0462-203-12141

0.66

0462-210-1231

5.19

Mating Connectors

Required Components

this product has no mating Required components products

Accessories

Description

Details

HDP26-24-9SE-L015

Drawings
