| Series | DT Series |
|---|---|
| Brand | Deutsch |
| No. of cavities | 12 |
| Part Number | DT04-12PC-C015 |
| Flange/In-line/PCB Mount | In-line |
| keyed | Yes, C key |
| Modification | Reduced Dia. Seals |
| Current Rating | 13 |
| Contact Size | 16 |
| Shape | Rectangular |
| Material | Plastic |
| Connector Style | Receptacle |
| Holds Pin/Socket | Pin |
| Insulation | .053-.120 [1.35-3.05] |
| Wire Size | 14, 16, 18, 20 |
| Required Wedgelock | W12P |
| Color | Green |
Contacts
Mating Connectors
Required Components
W12P
1
Accessories
Description
Details

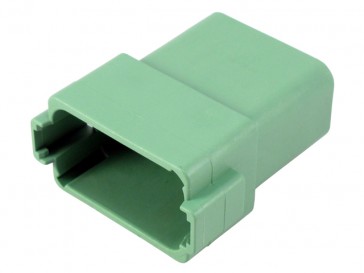

DT04-12PC-C015
