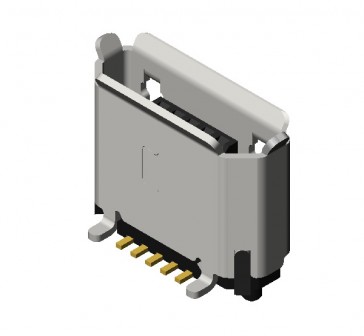

CU09 Series Micro USB 5 Circuits Type-B Straight SMT Board Mount Connectors Zoom

CU09 Series Micro USB 5 Circuits Type-B Straight SMT Board Mount Connectors

• Rated Current and Voltage :
Signal(Pin 2,3,4): 0.5A,250V AC (r.m.s)
Power(Pin 1,5): 1.8A,250V AC (r.m.s)
• Dielectric Withstanding Voltage :
100V AC at sea level
• Contact Resistance : Initial＜30mΩ ; Final＜40mΩ
• Insulation Resistance : ＞1000MΩ
• Operating Temperature : -25℃~85℃ storage; -20℃~85℃ operating
• RoHS Compliant
• Lead Free IR Processes

Availability: Estimated delivery time 2-3 weeks

1

Conditions Of Sales
Terms of delivery

Shipping information
Payment information





Additional Info

Additional Info

Circuits 5 CIRCUTS
Plating Code E= Gold Flash Plated over 50μ” Nickel Download CU0932S PDF
Product Drawings Download CU0932S
Specification Download SPCU024
Test Report Download CU09SEV15B0-R0 TEST Download TVL0138U091
Location CCT-TVL0138

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

N/A
