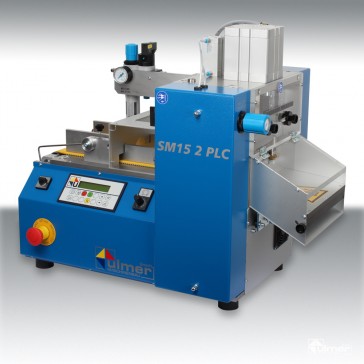

Ulmer Universal cutting machine SM 15 2PLC

The extremely reliable and solid universal cutting machines of the SM 15-series has been designed to process a wide range of different materials.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Cutting machine Brands Ulmer
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

The extremely reliable and solid universal cutting machines of the SM 15-series has been designed to process a wide range of different materials. By use of the appropriate accessories, materials such as PVC hoses, textile tubes, rubber, cable, ribbon cables, wire, strands, ropes, felt materials, foils, textiles, leather, materials of the medical field and diverse other material can be processed. There are three types of cutting tools available, as there are:

  • Punching cut: For hoses, foamed rubber cords and sealing profiles
  • Shearing Cut: For cables, ribbon cables, strands, shrinkable tubes etc
  • Tube Cut: For diverse tube materials

Optionally, there’s a cutting head for the SM 15 2/PE for mitre cutting available.

In order to process extremely wide materials or for multi-lane-cutting, the SM 30-series has been designed. With a maximum-throughput-width of 300 mm, the SM 30 offers an excellent cutting machine technology in the field of foils and multi-lane-cutting.


The infeed side guides can be adjusted to the material width. The guides are available in different designs.

Technical Data

  • Drive motor: Servo
  • Speed: 1.0 m/sec
  • Length: 650 mm
  • Depth: 410 mm
  • Height: 570 mm
  • Control panel: Membrane keyboard
  • Display: Multilingual (selectable)
  • Operating hours and counter: Included
  • Stop at end of material: Included
  • Length setting: 0.1 mm steps
  • Max. Length input: 999,999 mm
  • Throughput height: Round material up to 28 mm in the centre of the machine
  • Throughput height across the entire machine width: 15 mm
  • Upper belt lift: Pneumatic
  • Compressed air supply: 6 bar / 87 psi
  • Power supply: 230 V / 50-60 Hz
  • Cutter stroke: Pneumatic
  • Air consumption (litre per cutter stroke): 3.35
  • Weight: 65 kg
