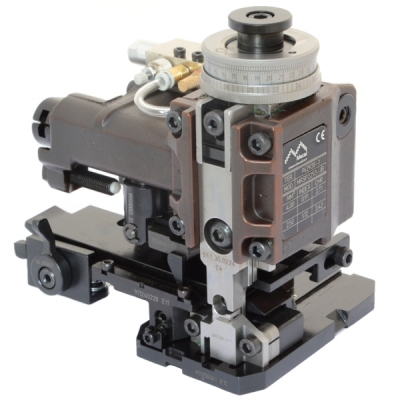

Mecal Restyling Pneumatic

Mini applicator for linked terminals, with thickness < 1.2mm., terminal pitch > 27mm (if the pitch is lower than 27mm, a pneumatic feeding-system version can be supplied upon request), wire section between 0 and 10mm².

Pneumatic « side-feed » feeding system for linked terminals on a reel to be unrolled left to right.

Availability: Estimated delivery time 2-3 weeks

1

Additional Info

Additional Info

Country of Manufacture
Crimping equipment Brands Mecal
Type of press Electromech
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products

Accessories

this product has no accessories products

Description

Details

Technical Specifications
  • ID: MRSP
  • Crimping Height: 135,8mm(5,346")
  • Stroke: 40/30mm (1,575/1,18")
  • Terminal Pitch: > 27 mm (>1,06") Max. stroke 35mm
  • Terminal Thickness: < 1,2mm (<0,047")
  • Wire Section: max 10mm²
  • Feeding System: air pressure 5/6 Bar
  • Weight: 4,1Kg (9,02lb)
  • Dimension mm: W140,5xH145,5xD105
  • Dimension ("): W5,53"xH5,72"xD4,13"
  • Option: Continuous regulating head / 0,01mm(0,00039") resolution / 2,7mm(0,106") range


Mini applicator for linked terminals, with thickness < 1.2mm., terminal pitch > 27mm (if the pitch is lower than 27mm, a pneumatic feeding-system version can be supplied upon request), wire section between 0 and 10mm².
Pneumatic « side-feed » feeding system for linked terminals on a reel to be unrolled left to right.
Can be supplied either with a continuous or a four-pad regulating head. It is supplied with a non-resettable 7-digit cycle counter.
Can be fitted to any crimping press having a crimping height (measured from the miniapplicator mounting plate to the press « T » coupling when at Bottom Dead Center) of 135.8mm ± 0.02mm, and can be used in both manual (for bench-top press) and automatic (for cut and strip machine) configuration.
It is supplied with a complete technical documentation containing all the information needed to safely use and correctly maintain the equipment.
Upon request, a capability study (including a picture of a sectioned crimped terminal) can be performed.
Compared to the previous models, the Restyling family offers the following features
  • The anvil can be replaced without removing the applicator from the press as the anvil is made in two parts – wire and insulation – it is possible to replace only the worn-out one
  • The mini applicator base-plate is thicker, hence more rigid
  • The mini applicator body allows the replacement of the crimpers without removing the ram from the applicator or the applicator from the press
  • The pitch adjusting system as well as the centering of the terminal over the anvil are even more user friendly and clearly illustrated in the detailed technical documentation

Produced under a quality Management System certified to ISO 9001 (TÜV).
