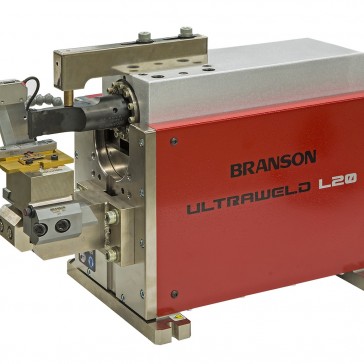

Branson Ultraweld L20 Spot Welder

The L20 Metal Welder is designed and built to assure you the highest degree of reliability and weld quality. It is used for a range of applications including wire termination, clock-spring assemblies, battery welding, aluminum welding, copper welding, and brass welding.

Availability: Estimated delivery time 2-3 weeks


Additional Info

Additional Info

Country of Manufacture
Miscellaneous Brands Branson
Miscellaneous Products Ultrasonic Welding
Page Layout No layout updates

Mating Connectors

this product has no mating connectors products

Required Components

this product has no mating Required components products


this product has no accessories products




  • Actuation: Pneumatic
  • Cooling System: Air
  • Data Interface: USB, Ethernet
  • Frequency: 20kHz
  • Input Power: 200-230V, 50/60 Hz
  • Output Power: 3300W, 4000W, 5500W
  • Overall Dimensions: H283mm x W260mm x L468mm
  • Pneumatics Type: 5.5 bar (80 psi) clean, dry air
  • Special Feature: Password protection
  • User Interface: Touchscreen, LCD
  • Weld Modes: Time, Energy


  • A precision roller bearing slide to assure smooth operation and extreme accuracy
  • A dynamic spring with preload adjustment to permit ramping of ultrasonic power for optimum welds
  • Precise adjustments for accurate setting of both upper and lower positive stops. Conveniently located flow controls offering easy adjustment of head speed in both directions
  • A polar mounted ultrasonic stack to facilitate linear and axial setup and efficient transmission of ultrasonic energy to the horn
  • Titanium horns with low cost replaceable tips or solid tool steel horns for fast setup and minimum tooling cost
  • Fixturing which is changed quickly and easily for various applications by means of a dovetail mounting
  • Optional vortex cooling to allow high-speed operation without heat buildup
  • Ultraweld® L20 - 20 kHz Welding System rugged and easily tooled for a wide range of nonferrous welding applications
