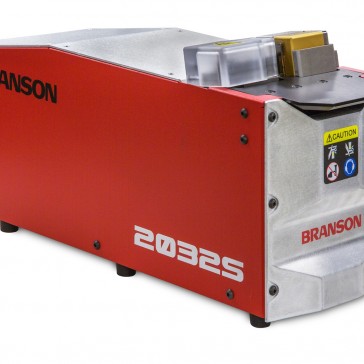

Meta Title | Ultrasonic Wire Splicer, Branson 2032S Wire Splice - Adcontact |
Meta Description | Ultrasonic Wire Splicer (Branson 2032S Wire Splicer) for applications that require a full-range of ultrasonic splicing system. |
Page Layout | No layout updates |
Mating Connectors
Required Components
Accessories
Description
Details
Specifications
- Actuation: Pneumatic
- Cooling System: Air
- Cross Section: Up to 32mm²
- Data Interface: USB, Ethernet
- Frequency: 20kHz
- Input Power: 200-245V, 50/60 Hz
- Output Power: 4000W
- Overall Dimensions: H263mm x W180mm x L506mm
- Pneumatics Type: 5.5 bar (80 psi) clean, dry air
- Special Feature: Password protection
- User Interface: Touchscreen, LCD
- Weld Modes: Time, Energy
Features
- A full-range ultrasonic splicing system capable of splicing from 0.35 to 32mm² wire
- Automatically adjustable splice parameters and parameter sequencing
- Uniquely designed 4-lobe keyed tip and 4-surface anvil provides longer tool life - and the lowest maintenance cost in the industry!
- Replaceable tip technology provides high tool life at low cost
- Patented vertical stacking design prevents side splicing, a major cause of field failures
- Patented closed-loop amplitude control helps ensure weld consistency
