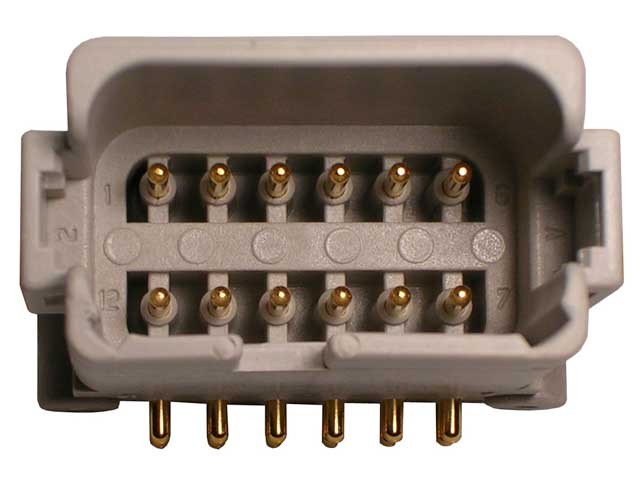

DTF15-12PA-G003
DeutschDT Series12PCB

DTF15-12PA-G003

Deutsch · DT Series · 12-way

Series
DT Series
No. of cavities
12
Flange/In-line/PCB Mount
PCB
keyed
Yes, A key
Current Rating
13
Generally high availability — ask for current lead time
Request a quoteCall usEmail

Specifications

SeriesDT Series
BrandDeutsch
No. of cavities12
Part NumberDTF15-12PA-G003
Flange/In-line/PCB MountPCB
keyedYes, A key
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Special FeaturesStraight molded gold pins, flangeless
Wire Size16
ColorGray

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
igesCAD Files 3D Model (IGES Version 99 ZIP)
stepCAD Files 3D Model (STEP Version 99 ZIP)

Request a quote for DTF15-12PA-G003

We typically respond within one business day. No account needed.

Mating connectors

DT06-12SA-CE05
DT06-12SA-CE05
DT06-12SA-CE06
DT06-12SA-CE06
DT06-12SA-EP06
DT06-12SA-EP06
DT06-12SA-P012
DT06-12SA-P012

More from Deutsch

DT04-08PA-LE11
DT04-08PA-LE11
DT13-08PB-G003
DT13-08PB-G003
DT13-08PB
DT13-08PB
DTM04-3P-E003
DTM04-3P-E003
DT06-2S-SDT-CE27
DT06-2S-SDT-CE27

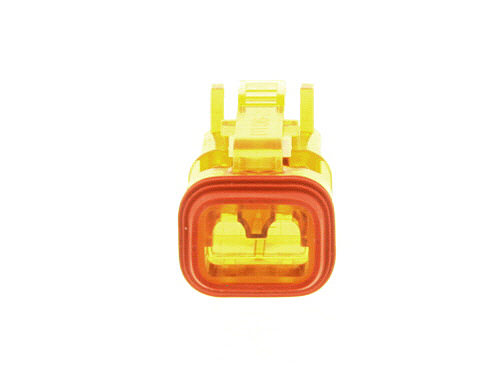

DT06-2S-SDT-CE28
DT06-2S-SDT-CE28

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
