DT04-08PA-LE11
DeutschDT Series8Flange

DT04-08PA-LE11

Deutsch · DT Series · 8-way

Series
DT Series
No. of cavities
8
Flange/In-line/PCB Mount
Flange
keyed
Yes, A key
Modification
Welded Flange, End Cap
Generally high availability — ask for current lead time
Request a quoteCall usEmail

Specifications

SeriesDT Series
BrandDeutsch
No. of cavities8
Part NumberDT04-08PA-LE11
Flange/In-line/PCB MountFlange
keyedYes, A key
ModificationWelded Flange, End Cap
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW8P
ColorBlack

Drawings & CAD files

dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
igesCAD Files 3D Model (IGES Version 99 ZIP)
stepCAD Files 3D Model (STEP Version 99 ZIP)
pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

Request a quote for DT04-08PA-LE11

We typically respond within one business day. No account needed.

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-08SA-E005
DT06-08SA-E005
DT06-08SA-EP08
DT06-08SA-EP08

Required components

W8P
W8P

Accessories

DT-RT1
DT-RT1
DT8P-L012-GKT
DT8P-L012-GKT

More from Deutsch

DT13-08PB-G003
DT13-08PB-G003
DTF15-12PA-G003
DTF15-12PA-G003
DT13-08PB
DT13-08PB
DTM04-3P-E003
DTM04-3P-E003
DT06-2S-SDT-CE27
DT06-2S-SDT-CE27

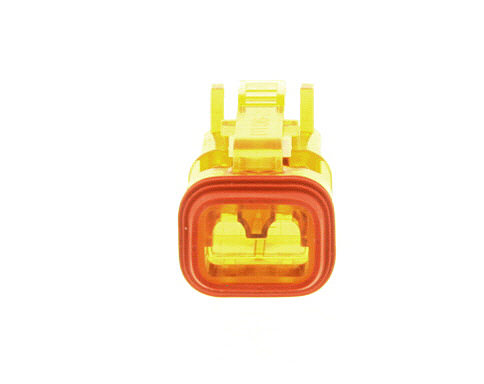

DT06-2S-SDT-CE28
