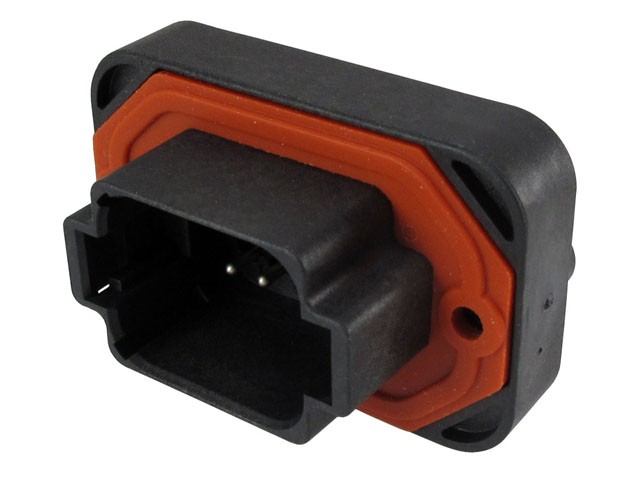

DT13-08PB
DeutschDT Series8PCB

DT13-08PB

Deutsch · DT Series · 8-way

Series
DT Series
No. of cavities
8
Flange/In-line/PCB Mount
PCB
keyed
Yes, B key
Current Rating
13
Generally high availability — ask for current lead time
Request a quoteCall usEmail

Specifications

SeriesDT Series
BrandDeutsch
No. of cavities8
Part NumberDT13-08PB
Flange/In-line/PCB MountPCB
keyedYes, B key
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Special Features90 degrees molded pins
Wire Size16
ColorBlack

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
igesCAD Files 3D Model (IGES Version 99 ZIP)
stepCAD Files 3D Model (STEP Version 99 ZIP)

Request a quote for DT13-08PB

We typically respond within one business day. No account needed.

Mating connectors

DT06-08SB
DT06-08SB
DT06-08SB-C015
DT06-08SB-C015
DT06-08SB-CE01
DT06-08SB-CE01
DT06-08SB-P012
DT06-08SB-P012

More from Deutsch

DT04-08PA-LE11
DT04-08PA-LE11
DT13-08PB-G003
DT13-08PB-G003
DTF15-12PA-G003
DTF15-12PA-G003
DTM04-3P-E003
DTM04-3P-E003
DT06-2S-SDT-CE27
DT06-2S-SDT-CE27
DT06-2S-SDT-CE28
DT06-2S-SDT-CE28

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
