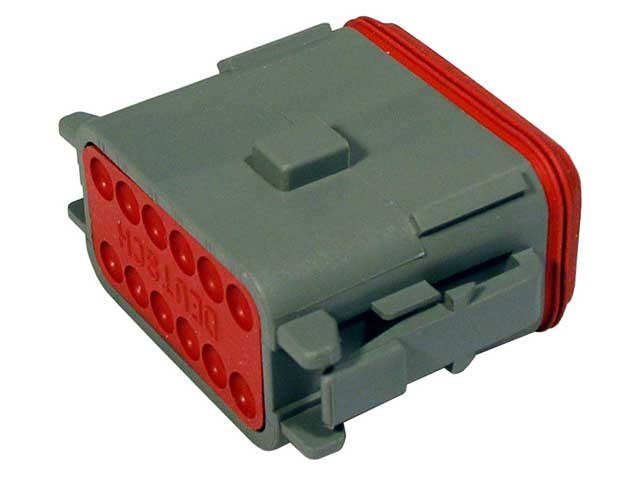

DT06-12SA-P012
DeutschDT Series12In-line

DT06-12SA-P012

Deutsch · DT Series · 12-way

Series
DT Series
No. of cavities
12
Flange/In-line/PCB Mount
In-line
keyed
Yes, A key
Modification
Enhanced Seal Retention
Generally high availability — ask for current lead time
Request a quoteCall usEmail

Specifications

SeriesDT Series
BrandDeutsch
No. of cavities12
Part NumberDT06-12SA-P012
Flange/In-line/PCB MountIn-line
keyedYes, A key
ModificationEnhanced Seal Retention
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW12S-P012
ColorGray

Drawings & CAD files

tifProduct Drawing (TIF)
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
igesCAD Files 3D Model (IGES Version 99 ZIP)
stepCAD Files 3D Model (STEP Version 99 ZIP)
pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)

Request a quote for DT06-12SA-P012

We typically respond within one business day. No account needed.

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-12PA-B016
DT04-12PA-B016
DT04-12PA-BE02
DT04-12PA-BE02
DT04-12PA-BL04
DT04-12PA-BL04

Required components

W12S-P012
W12S-P012

Accessories

1011-349-1205
1011-349-1205
1028-043-1205
1028-043-1205
DT-RT1
DT-RT1
DT12S-BT
DT12S-BT

More from Deutsch

DT04-08PA-LE11
DT04-08PA-LE11
DT13-08PB-G003
DT13-08PB-G003
DTF15-12PA-G003
DTF15-12PA-G003
DT13-08PB
DT13-08PB
DTM04-3P-E003
DTM04-3P-E003
DT06-2S-SDT-CE27
DT06-2S-SDT-CE27

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
