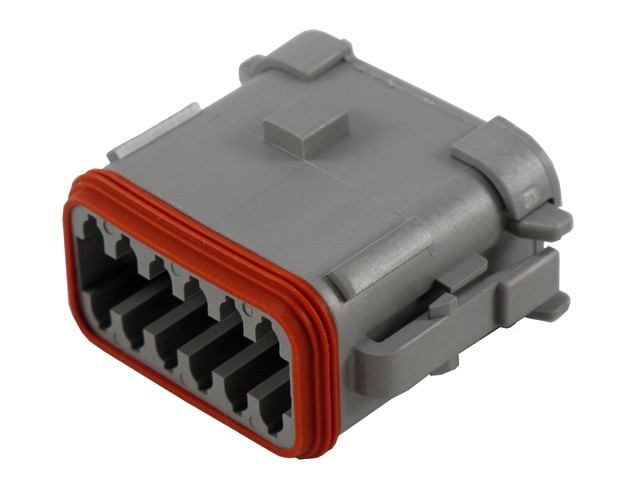

DT06-12SA-EP06
DeutschDT Series12In-line

DT06-12SA-EP06

Deutsch · DT Series · 12-way

Series
DT Series
No. of cavities
12
Flange/In-line/PCB Mount
In-line
keyed
Yes, A key
Modification
Enhanced Seal Retention, End Cap
Generally high availability — ask for current lead time
Request a quoteCall usEmail

Specifications

SeriesDT Series
BrandDeutsch
No. of cavities12
Part NumberDT06-12SA-EP06
Flange/In-line/PCB MountIn-line
keyedYes, A key
ModificationEnhanced Seal Retention, End Cap
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW12S-P012
ColorGray

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
igesCAD Files 3D Model (IGES Version 99 ZIP)
stepCAD Files 3D Model (STEP Version 99 ZIP)
pdfCustomer View Model (PDF)

Request a quote for DT06-12SA-EP06

We typically respond within one business day. No account needed.

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-12PA-B016
DT04-12PA-B016
DT04-12PA-BE02
DT04-12PA-BE02
DT04-12PA-BL04
DT04-12PA-BL04

Required components

W12S-P012
W12S-P012

Accessories

1011-349-1205
1011-349-1205
DT-RT1
DT-RT1
