Catalogue item

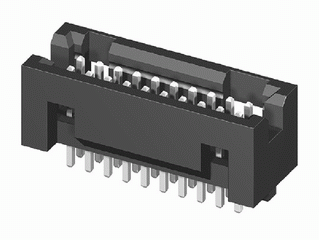

CHC2 Series Dual Row Board Mount Pin Header
• Current rating : 1 A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 600V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃ ~ 105℃ • RoHS Compliant
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1443.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P260 CHC2-1</a>
Circuits
10 TO 60 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_777.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CHC205S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P260 CHC2-1 |
| Circuits | 10 TO 60 CIRCUTS |
| Product Drawings | Download CHC205S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | 2= Gold Flash Plated over 50μ” Nickel 3= 15μ” Gold Plated over 50μ” Nickel 4= 30μ” Gold Plated over 50μ” Nickel Download General Plating PDF |
| RoHS | 0 |
| Specification | Download SPCH037 |
| Test Report | Download Test Report Download Packing CI15HC22 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
