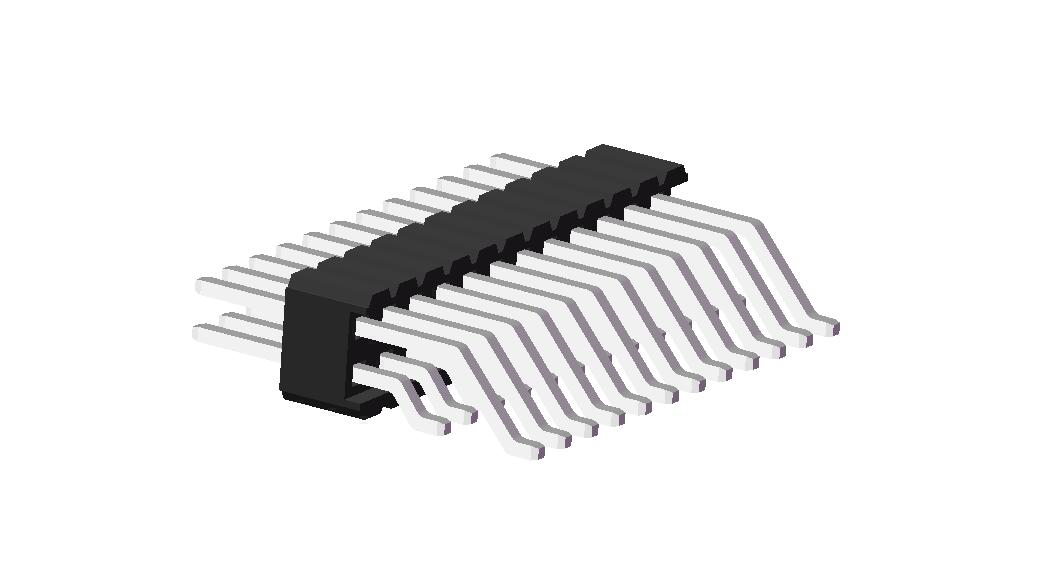

CH71 Series Dual Row Board Mount Pin Header
Catalogue item

CH71 Series Dual Row Board Mount Pin Header

• Rated current and voltage : 2A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞5000MΩ • Operating Temperature : -40℃ ~ 105℃ • RoHS Compliant

Generally high availability — ask for current lead time
Circuits
6~80 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_191.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CH71145S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0069
Request a quoteCall usEmail

Additional information

Circuits6~80 CIRCUTS
Product DrawingsDownload CH71145S
GWIT0
Halogen Free0
Lead Free0
LocationCCT-TVL0069
Plating Code1= Matte Tin over Nickel Plated Download General Plating PDF
RoHS0
SpecificationDownload SPCH064
Test ReportDownload Test Report Download Packing TVL0069H711
Tin-lead0
TUV0
UL0

Description

N/A
