Catalogue item

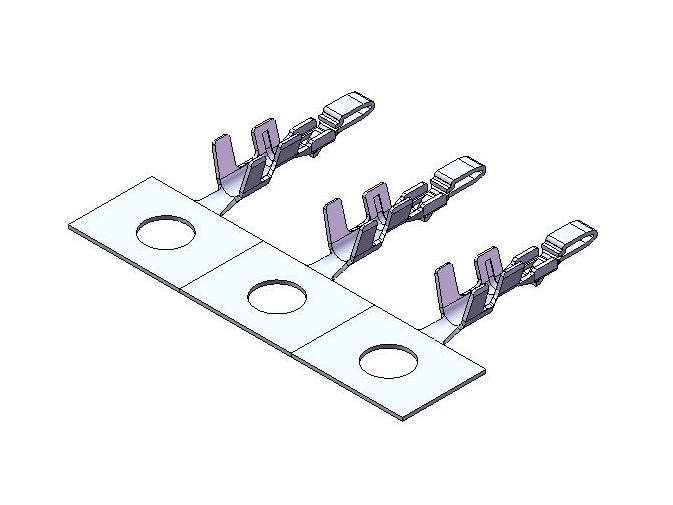

CI16 Series 1.00mm(.039) Wire to Board Crimp Terminal
• Rated Current and Voltage : 1A AC(r.m.s)/DC (AWG#28) 125V AC(r.m.s)/DC • Dielectric Withstanding Voltage : 500V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞100MΩ • Ambient Temperature : -25℃~ 85℃ • RoHS Compliant
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1560.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P80 CI16-1</a>
Circuits
#28~32 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_265.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CI1601S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P80 CI16-1 |
| Circuits | #28~32 CIRCUTS |
| Product Drawings | Download CI1601S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | HBC |
| Plating Code | 1= Tin plated over Nickel Download GENERAL PLATING-2 PDF |
| RoHS | 0 |
| Specification | Download SPCI117 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
