Catalogue item

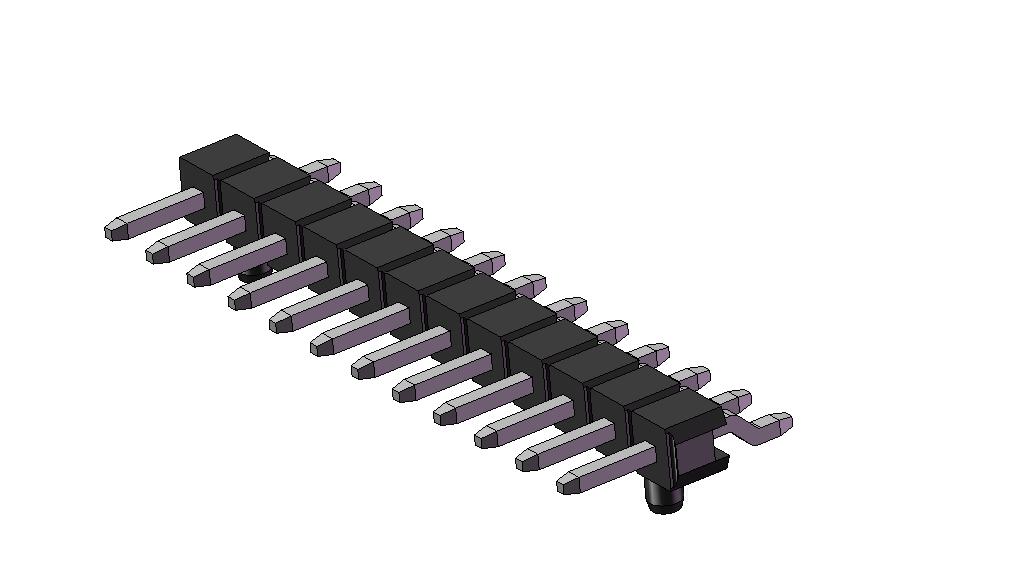

CH11 Series Side Entry Single Row Board Mount Pin Header
• Rated current and voltage: 2A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 500 V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞5000MΩ • Operating Temperature : -40℃~105℃ • RoHS Compliant • Halogen-Free
Generally high availability — ask for current lead time
Circuits
2-40 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_181.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CH11173S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Location
CCT-TVL0069
Additional information
| Circuits | 2-40 CIRCUTS |
| Product Drawings | Download CH11173S |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CCT-TVL0069 |
| Plating Code | 1= Tin Over Nickel Plated Download General Plating PDF |
| RoHS | 0 |
| Specification | Download SPCH070 |
| Test Report | Download Test Report Download Packing TVL0069H112 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
