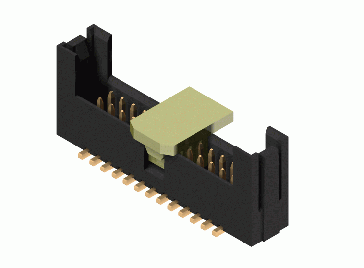

CH06 Series Dual Row Board Mount Pin Header
• Rated Current and Voltage : 1.5A 250V AC(r.m.s) • Dielectric Withstanding Voltage : 1000V AC for one minute • Contact Resistance : ＜20mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃ ~ 105℃ • RoHS Compliant
Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1432.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P250 CH07 CH06</a>
Circuits
06 14 26 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_179.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CH0601S2</a>
GWIT
0
Halogen Free
0
Lead Free
0
Additional information
| Catalog-page | Download P250 CH07 CH06 |
| Circuits | 06 14 26 CIRCUTS |
| Product Drawings | Download CH0601S2 |
| GWIT | 0 |
| Halogen Free | 0 |
| Lead Free | 0 |
| Location | CED |
| Plating Code | 1= Tin Over Nickel Plated 2= Gold Flash Plated over 50μ” Nickel 3= 15μ” Gold Plated over 50μ” Nickel 4= 30μ” Gold Plated over 50μ” Nickel Download General Plating PDF |
| RoHS | 0 |
| Specification | Download SPCH056 |
| Tin-lead | 0 |
| TUV | 0 |
| UL | 0 |
Description
N/A
