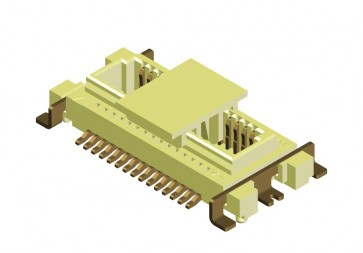

CBRE Series 0.50mm(.020") Board to Board Receptacle Connector
Catalogue item

CBRE Series 0.50mm(.020") Board to Board Receptacle Connector

• Current rating : 0.5A 100V AC /DC • Dielectric Withstanding Voltage : 250 V AC for one minute • Contact Resistance : ＜40mΩ • Insulation Resistance : ＞1000MΩ • Operating Temperature : -40℃~85℃ • RoHS Compliant • Lead Free Process • Halogen-Free

Generally high availability — ask for current lead time
Catalog-page
<a href='/media/cvilux/cdi_pdf_1411.pdf' style='color: rgb(255,0,0)' target='_blank'>Download P228 CBRE-2</a>
Circuits
30 CIRCUTS
Product Drawings
<a href='/media/cvilux/cdi_pdf_111.pdf' style='color: rgb(255,0,0)' target='_blank'>Download CBRE03S</a>
GWIT
0
Halogen Free
0
Lead Free
0
Request a quoteCall usEmail

Additional information

Catalog-pageDownload P228 CBRE-2
Circuits30 CIRCUTS
Product DrawingsDownload CBRE03S
GWIT0
Halogen Free0
Lead Free0
LocationHBC
Plating Code2= Gold Flash Plated over Nickel Download General Plating PDF
RoHS0
SpecificationDownload SPCB043
Test ReportDownload Test Report Download Packing CI15BRE1
Tin-lead0
TUV0
UL0

Description

N/A
