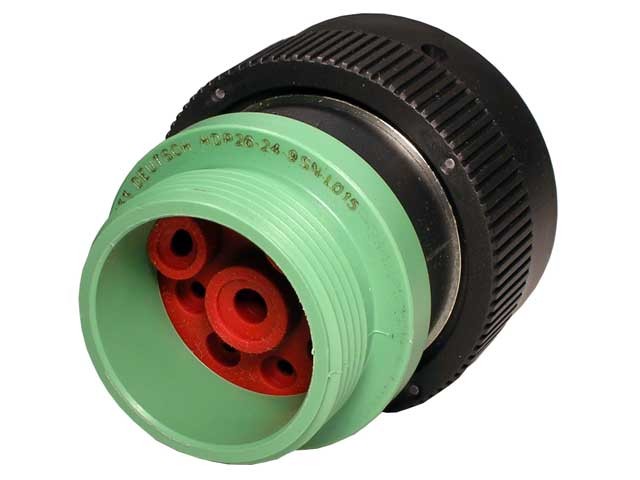

HDP26-24-9SN-L015
HDPDeutsch

HDP26-24-9SN-L015

HDP Heavy Power Series

Generally high availability — ask for current lead time
Cavities
9
Wire size (AWG)
6, 8, 10, 14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

SeriesHDP20 Series
BrandDeutsch
No. of cavities9
Part NumberHDP26-24-9SN-L015
Flange/In-line/PCB MountIn-line
ModificationThreaded Adapter
ShapeCircular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation(#4).280-.292 [7.11-7.42], (#8).190-.240 [4.83-6.10], (#12).134-.170 [3.40-4.32]
Wire Size6, 8, 10, 14, 16, 18, 20
Shell Size24 shell
ColorBlack

Compatible contacts

0462-203-04141
0462-203-04141
0462-203-08141
0462-203-08141
0462-203-12141
0462-203-12141
0462-210-1231
0462-210-1231

Mating connectors

HDP24-24-9PN-L015
HDP24-24-9PN-L015

Accessories

114008
114008
114009
114009
M902-2053
M902-2053
M902-2243
M902-2243

Drawings & CAD files

dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
123.65 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
694.10 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
289.45 KB
pdfCustomer View Model (PDF)
711.08 KB
pdfProduct Drawing (PDF)
319.49 KB
tifProduct Drawing (TIF)
82.96 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
