DeutschCatalogue item

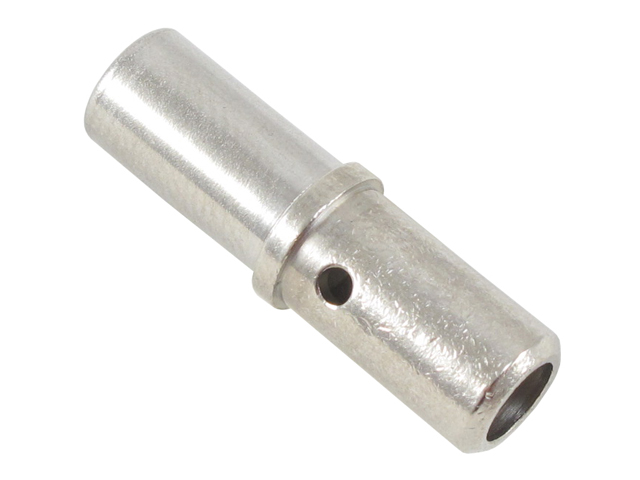

0462-203-08141
Generally high availability — ask for current lead time
Contact Size
8
Current Rating
60
Holds Pin/Socket
Socket
keyed
No
Material
Nickel
Series
DRB Series, DTHD Series, HD30 Series, HDP20 Series
Additional information
| Contact Size | 8 |
| Current Rating | 60 |
| Holds Pin/Socket | Socket |
| keyed | No |
| Material | Nickel |
| Series | DRB Series, DTHD Series, HD30 Series, HDP20 Series |
| Solid/Stamped & Formed | Solid |
| Wire Size | 8, 10 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_0462-203-08141_99_c-0462-203-08141-99-3d.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_0462-203-08141_99_c-0462-203-08141-99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_0462-203-08141_99_c-0462-203-08141-99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_0462-203-08141_99_c-0462-203-08141-99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
