Outlet stock, €18.96 per unit
17 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet
1
HDDeutsch

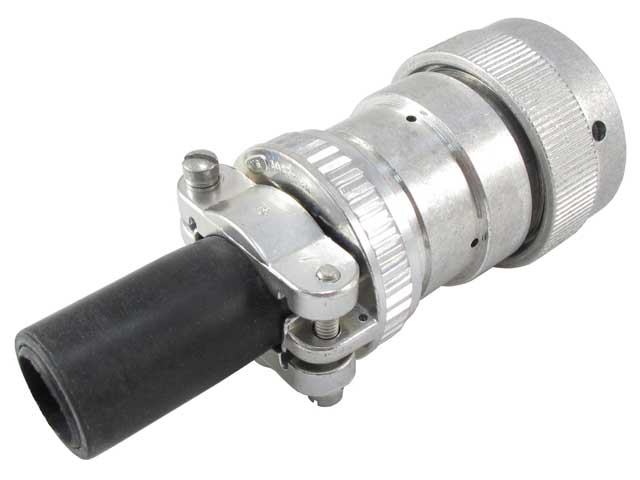

Deutsch HD36-24-9SN-059, HD Series, connector, for wire processing
HD Series
Generally high availability — ask for current lead time
Cavities
9
Series
HD Series
Wire size
6, 8, 10, 14, 16, 18, 20
Color
Silver
Technical specifications
| No. of cavities | 9 |
| Color | Silver |
| Connector Style | Plug |
| Flange/In-line/PCB Mount | In-line |
| Holds Pin/Socket | Socket |
| Insulation | (#4).280-.292 [7.11-7.42], (#8).190-.240 [4.83-6.10], (#16).100-.134 [2.54-3.40] |
| keyed | No |
| Material | Aluminum |
| Modification | Cable Clamp |
| Seal Size | N seal |
| Series | HD30 Series |
| Shape | Circular |
| Shell Size | 24 shell |
| Wire Size | 6, 8, 10, 14, 16, 18, 20 |

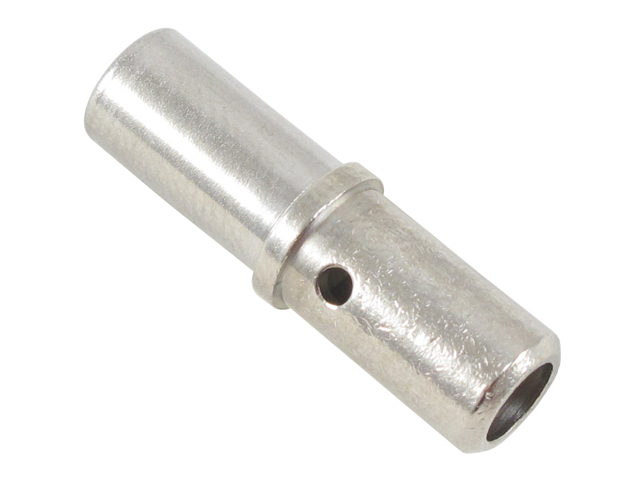

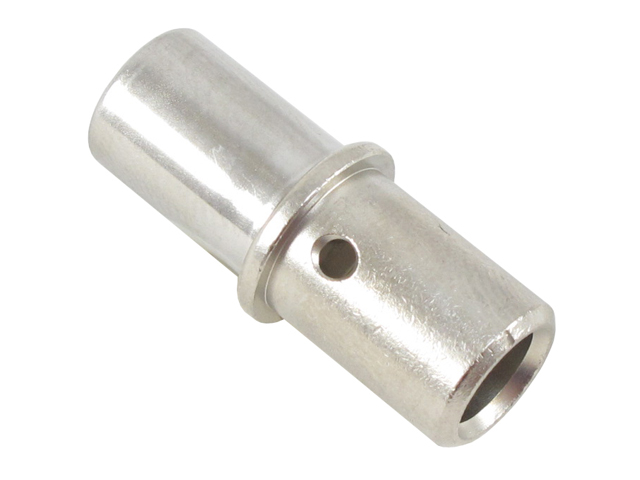

Compatible contacts

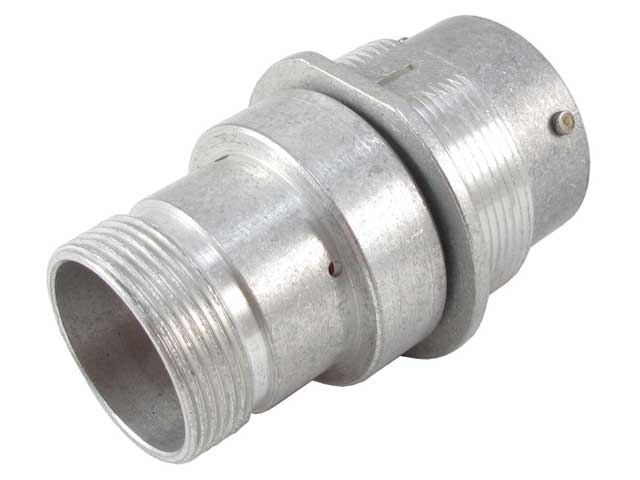

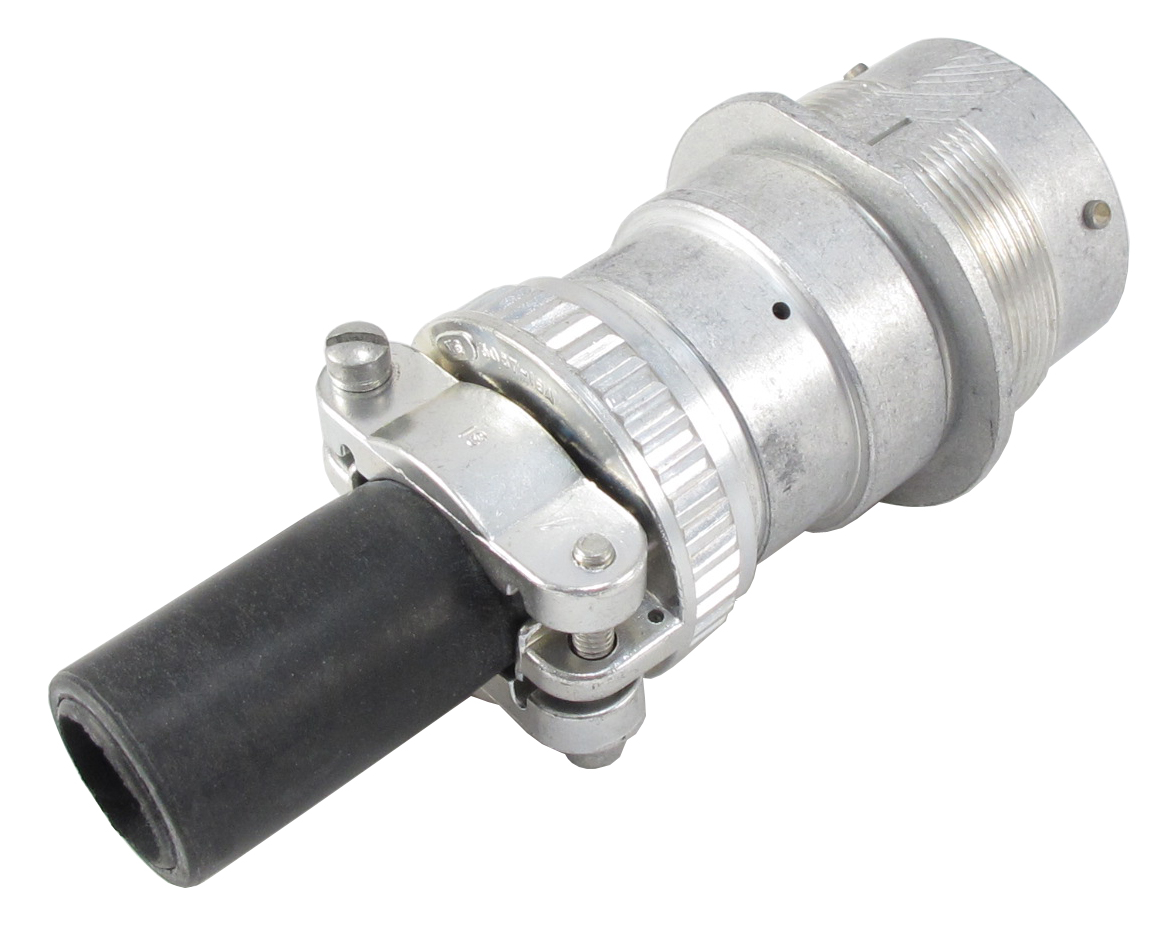

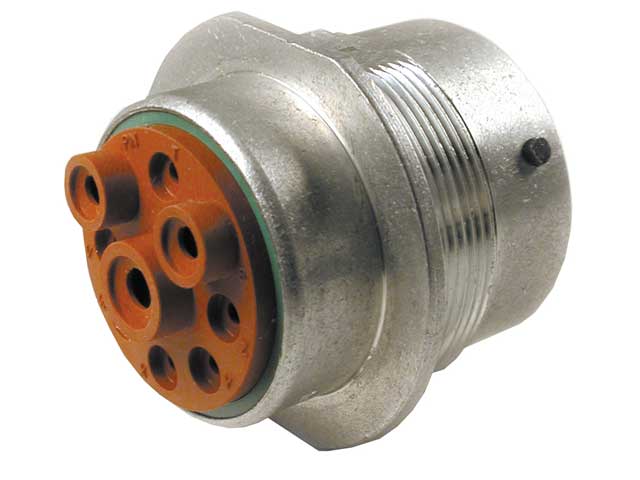

Mating connectors
Accessories
Drawings & CAD files
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
