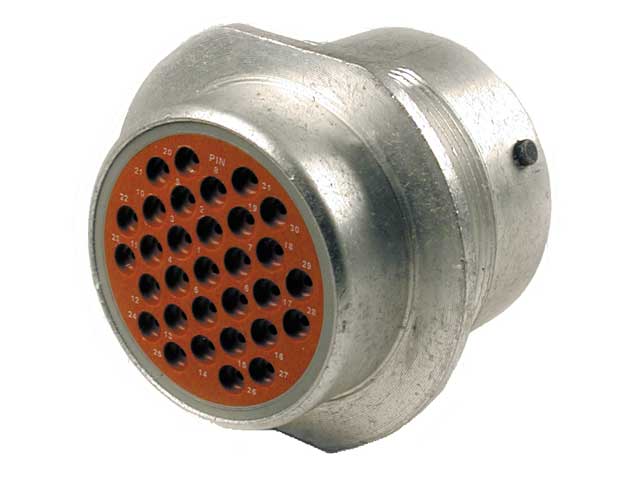

HD34-24-31PT

Outlet stock, €9.34 per unit

52 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
HDDeutsch

Deutsch HD34-24-31PT, HD Series, connector, for wire processing

HD Series · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
31
Contact size
16
Series
HD Series
Current rating
13
Wire size
14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities31
ColorSilver
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation.088-.106 [2.24-2.69]
keyedNo
MaterialAluminum
Seal SizeT seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

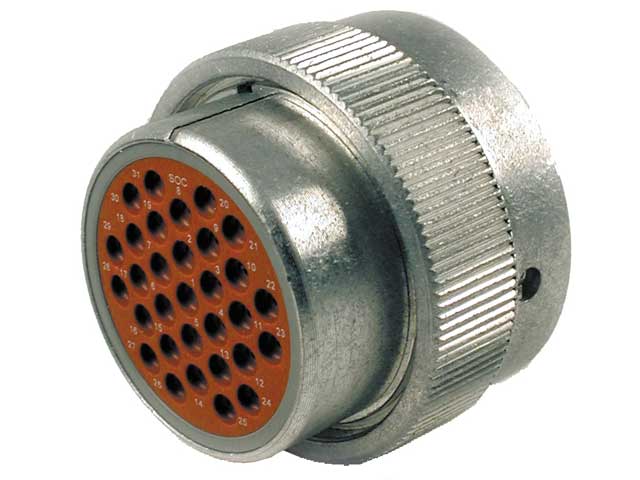

HD36-24-31ST
HD36-24-31ST

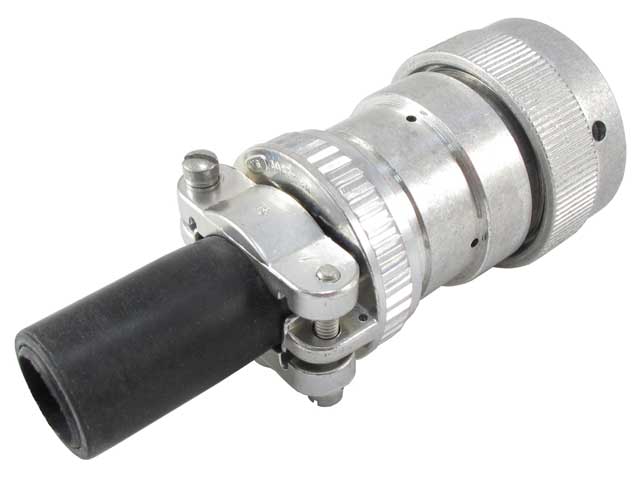

HD36-24-31ST-059
HD36-24-31ST-059

Accessories

112263-90
112263-90
112264
112264
HD30-24BT
HD30-24BT
HDC36-24
HDC36-24

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
