DeutschCatalogue item
1060-16-0122
Generally high availability — ask for current lead time
Contact Size
16
Current Rating
13
Holds Pin/Socket
Pin
Insulation
.075-.140 [1.90-3.55]
keyed
No
Material
Nickel
Additional information
| Contact Size | 16 |
| Current Rating | 13 |
| Holds Pin/Socket | Pin |
| Insulation | .075-.140 [1.90-3.55] |
| keyed | No |
| Material | Nickel |
| Series | HD30 Series, HDP20 Series, DRC Series, HD10 Series, DT Series, DRB Series, DTV Series, AEC Series, STRIKE Series, Jiffy Splice |
| Solid/Stamped & Formed | Stamped & Formed |

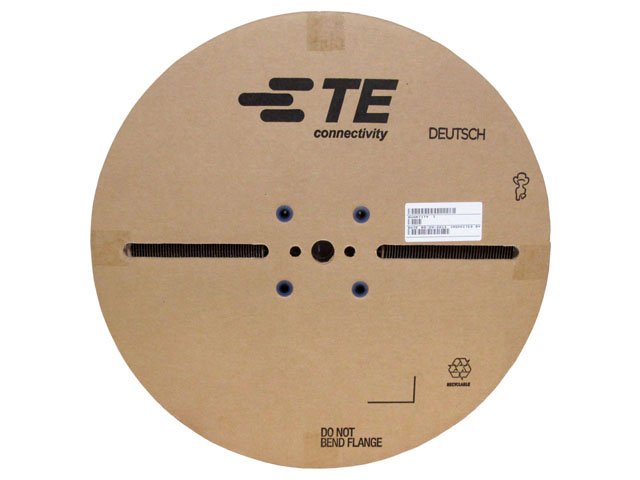

| Special Features | Reel |
| Wire Size | 14, 16, 18 |
Drawings
Customer View Model (PDF)3D_CVM_CVM_1060-16-0122_99.pdfProduct Drawing (PDF)ENG_CD_1060-16-01XX_H.pdfProduct Drawing (TIF)ENG_CD_1060-16-01XX_H.tifCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_1060-16-0122_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_1060-16-0122_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_1060-16-0122_99.3d_stp.zip
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
Visit DEUTSCH website
