HD34-18-6PN-072
HDDeutsch

HD34-18-6PN-072

HD

Generally high availability — ask for current lead time
Cavities
6
Series
HD
Wire size
6, 14, 16, 18, 20
Color
Silver
Request a quoteCall usEmail

Technical specifications

No. of cavities6
ColorSilver
Connector StyleReceptacle
Flange/In-line/PCB MountFlange, In-line
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#16).100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
ModificationAdapter
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size18 shell
Wire Size6, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-0490
0460-204-0490
1060-16-0122
1060-16-0122

Mating connectors

HD36-18-6SN
HD36-18-6SN
HD36-18-6SN-059
HD36-18-6SN-059

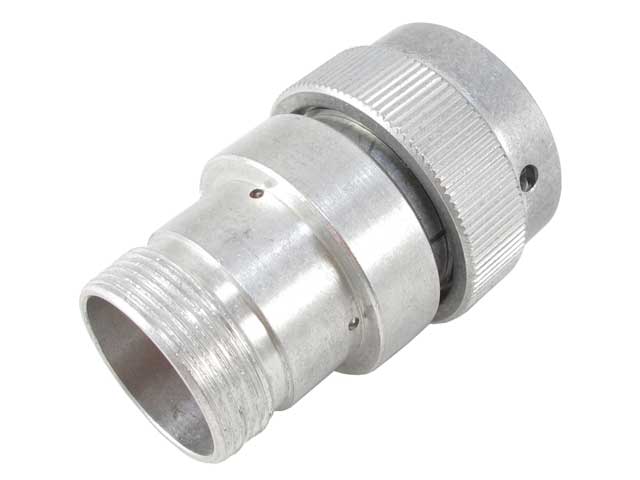

HD36-18-6SN-072
HD36-18-6SN-072

Accessories

114020-90
114020-90
114021
114021
16-04978
16-04978
HDC36-18

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
