HD16-9-1939S-P080
HDDeutsch

HD16-9-1939S-P080

HD · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
9
Contact size
16
Series
HD
Current rating
13
Wire size
14, 16, 18, 20
Color
Green
Request a quoteCall usEmail

Technical specifications

No. of cavities9
ColorGreen
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationJ1939 Type II
SeriesHD10 Series
ShapeCircular
Special FeaturesThreaded rear, J1939
Wire Size14, 16, 18, 20

Mating connectors

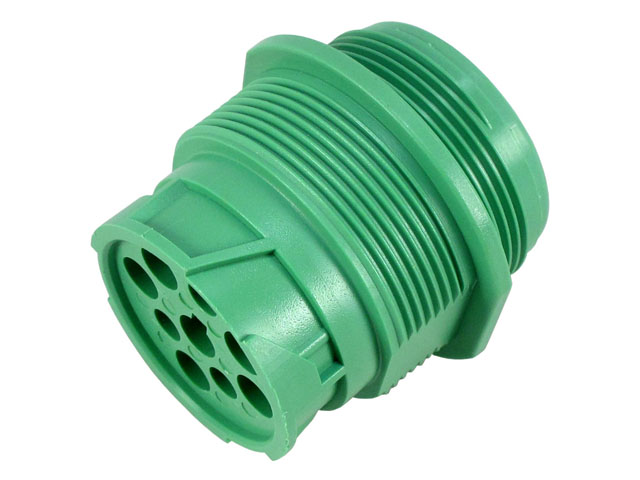

HD10-9-1939P-BP03
HD10-9-1939P-BP03
HD10-9-1939P-P080
HD10-9-1939P-P080

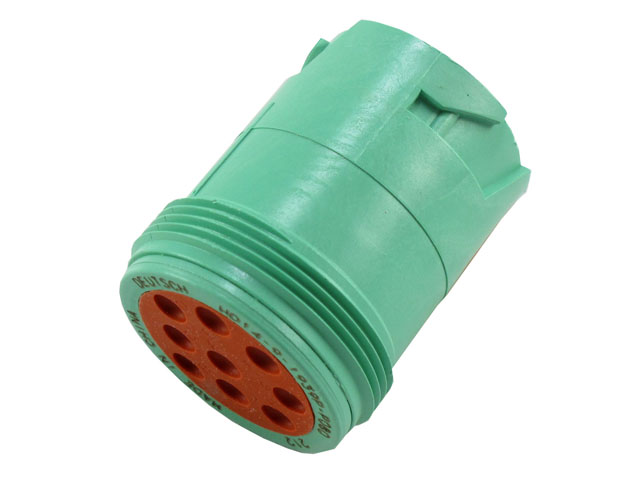

HD14-9-1939P-P080
HD14-9-1939P-P080

Drawings & CAD files

pdfCustomer View Model (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
