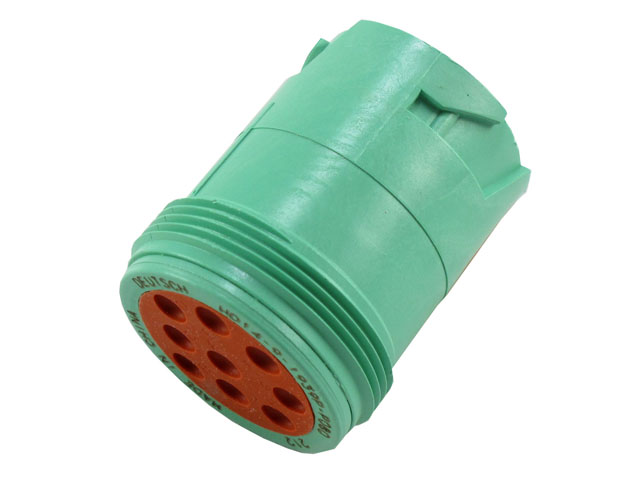

HD14-9-1939P-P080
HDDeutsch

HD14-9-1939P-P080

HD · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
9
Contact size
16
Series
HD
Current rating
13
Wire size
14, 16, 18, 20
Color
Green
Request a quoteCall usEmail

Technical specifications

No. of cavities9
ColorGreen
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationJ1939 Type II
SeriesHD10 Series
ShapeCircular
Special FeaturesThreaded rear, J1939
Wire Size14, 16, 18, 20

Mating connectors

HD16-9-1939S-P080
HD16-9-1939S-P080
HD17-9-1939S-P080
HD17-9-1939S-P080

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
