HD10-9-1939PE-BP03
HDDeutsch

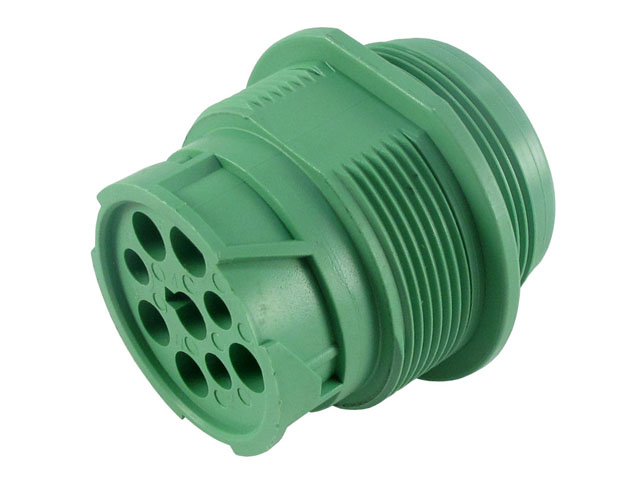

HD10-9-1939PE-BP03

HD · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
9
Contact size
16
Series
HD
Current rating
13
Wire size
14, 16, 18, 20
Color
Green
Request a quoteCall usEmail

Technical specifications

No. of cavities9
ColorGreen
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.053-.120 [1.35-3.05]
MaterialPlastic
ModificationJ1939 Type II, Panel Nut Mount
Seal SizeE seal
SeriesHD10 Series
ShapeCircular
Special FeaturesThreaded rear, J1939
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Accessories

2411-002-1805
2411-002-1805
2414-002-1886
2414-002-1886
HD30-18BT
HD30-18BT
HDC16-9
HDC16-9

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
