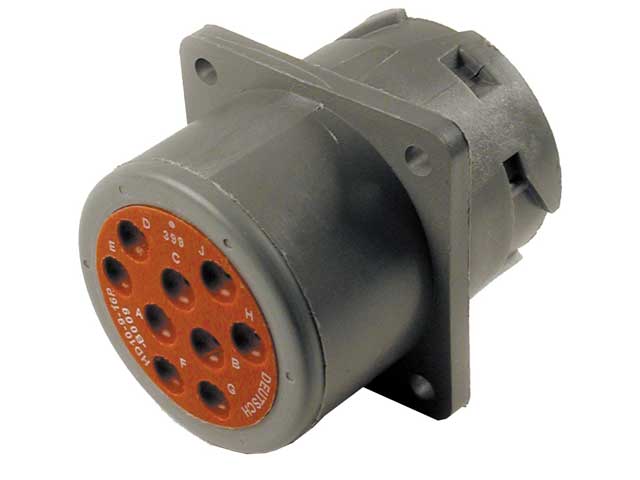

HD10-9-16P-B009
HDDeutsch

HD10-9-16P-B009

HD · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
9
Contact size
16
Series
HD
Current rating
13
Wire size
14, 16, 18, 20
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities9
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
SeriesHD10 Series
ShapeCircular
Special FeaturesNon-threaded rear
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

HD16-9-16S
HD16-9-16S

Accessories

HD10-9-GKT
HD10-9-GKT
HD10-9BT
HD10-9BT
HDC16-9
HDC16-9
HDC16-9-JDL
HDC16-9-JDL

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
