HD10-5-16P

Outlet stock, €4.44 per unit

5 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
HDDeutsch

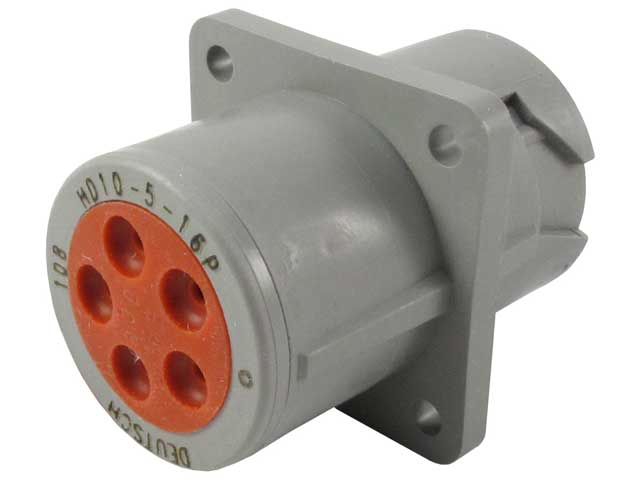

Deutsch HD10-5-16P, HD Series, connector, for wire processing

HD Series · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
5
Contact size
16
Series
HD Series
Current rating
13
Wire size
14, 16, 18, 20
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities5
ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationNon-threaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

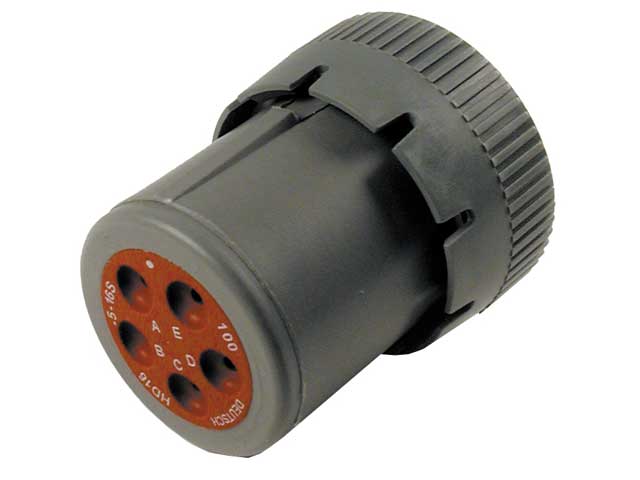

HD16-5-16S
HD16-5-16S

Accessories

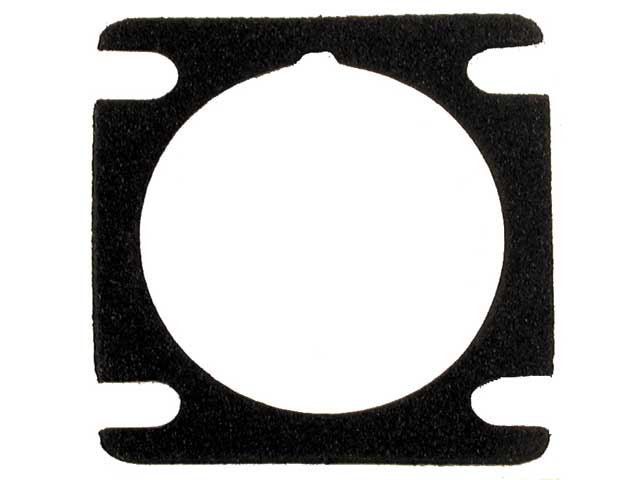

HD10-5-GKT
HD10-5-GKT

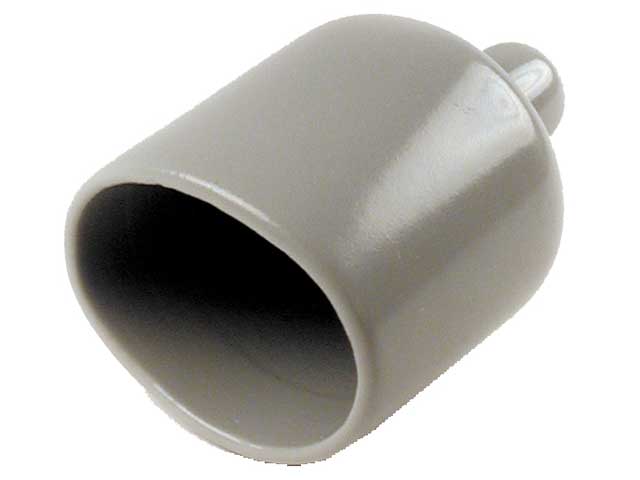

HD10-5BT
HD10-5BT

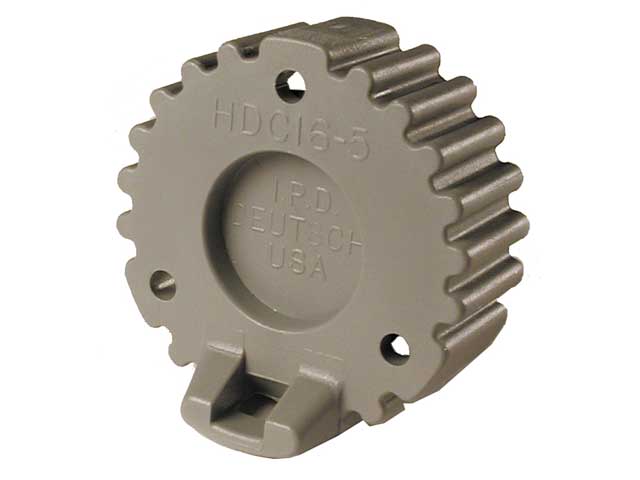

HDC16-5
HDC16-5

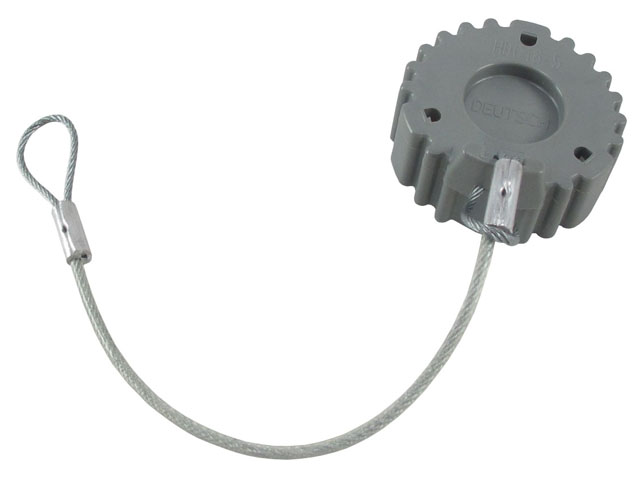

HDC16-5-LA
HDC16-5-LA

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
