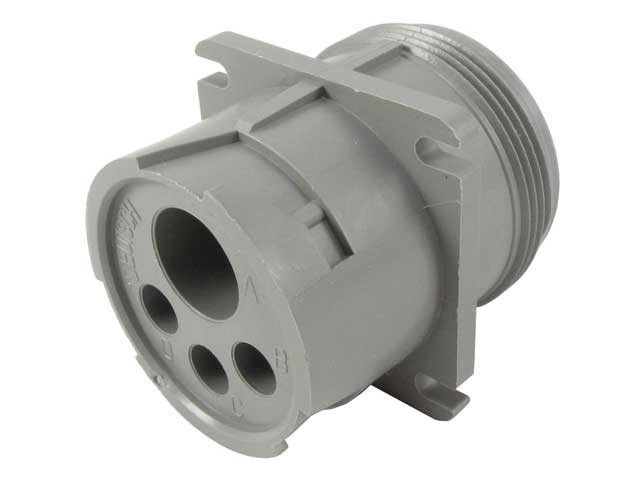

HD10-4-4P
HDDeutsch

HD10-4-4P

HD

Generally high availability — ask for current lead time
Cavities
4
Series
HD
Wire size
6, 14, 16, 18, 20
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities4
ColorGray
Connector StyleReceptacle
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation(#4).280-.292 [7.11-7.42], (#16).100-.150 [2.54-3.81]
keyedNo
MaterialPlastic
ModificationThreaded Rear
SeriesHD10 Series
ShapeCircular
Wire Size6, 14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
0460-204-0490
0460-204-0490
1060-16-0122
1060-16-0122

Mating connectors

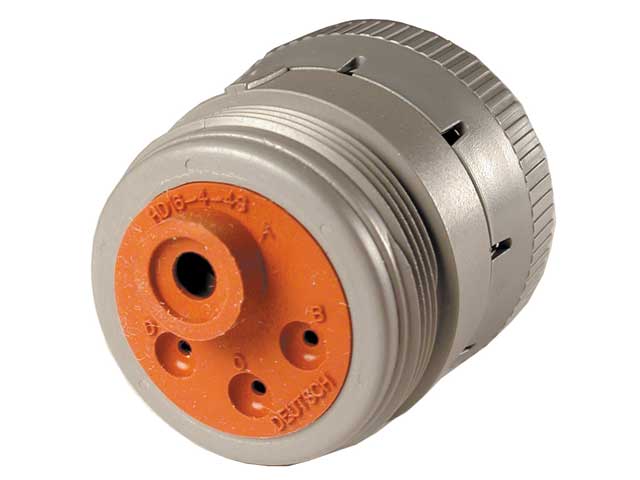

HD16-4-4S
HD16-4-4S

Accessories

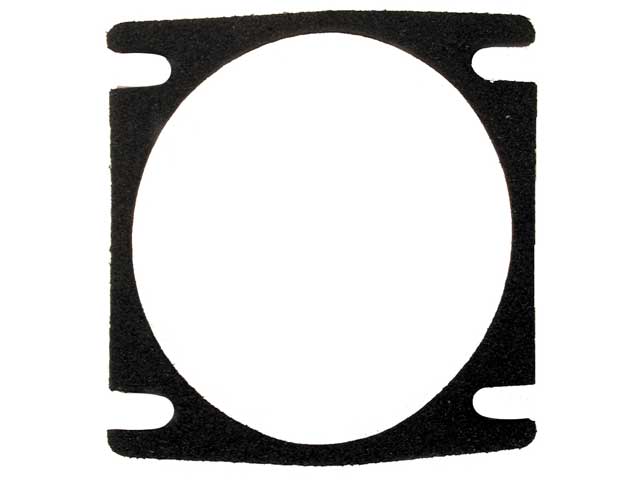

HD10-9-GKT
HD10-9-GKT

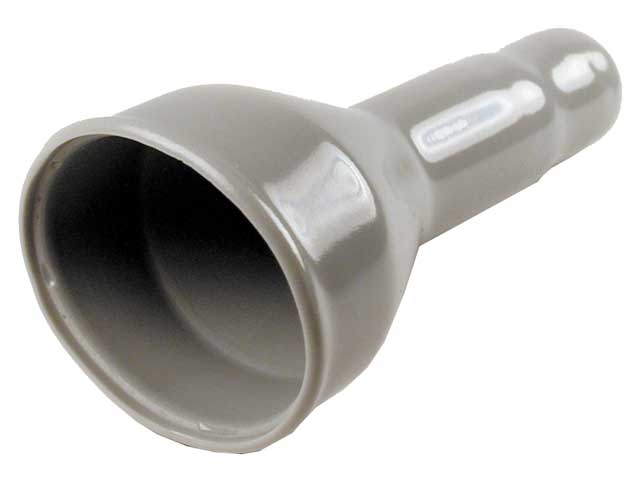

HD10-9BT
HD10-9BT

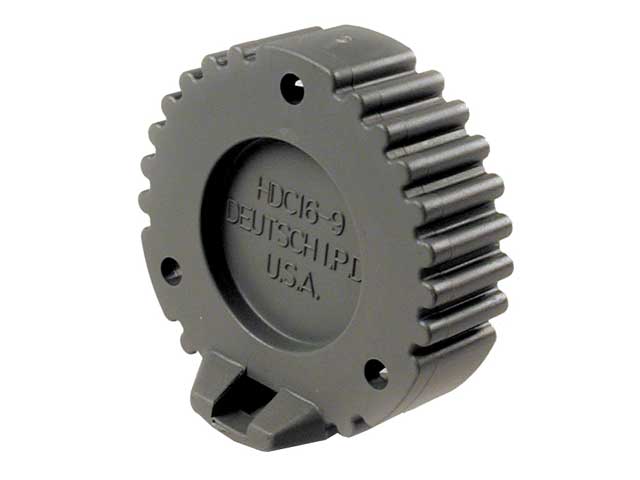

HDC16-9
HDC16-9

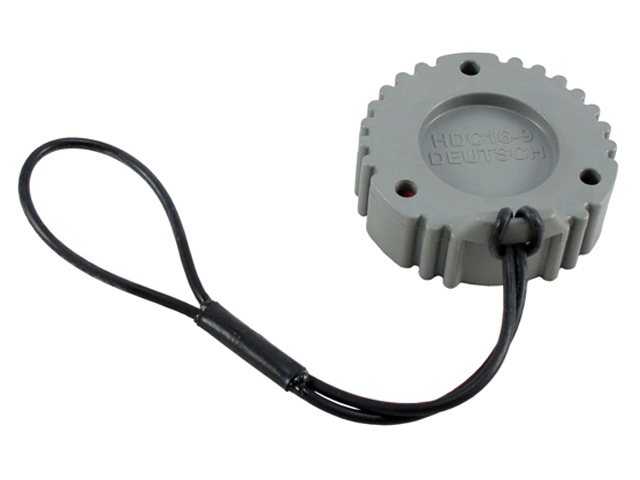

HDC16-9-JDL
HDC16-9-JDL

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
