DT15-waySocketDeutsch

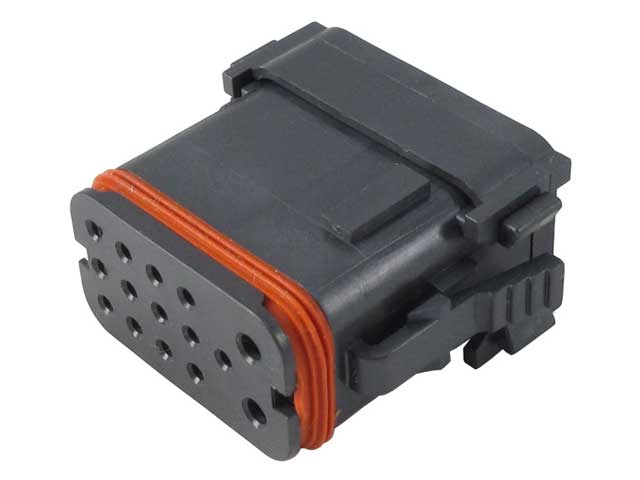

DT16-15SA-K003
DT Series · 15-way · Socket
Generally high availability — ask for current lead time
Cavities
15
Series
DT Series
Type
Socket
Wire size
10, 12, 14, 16, 18, 20
Color
Purple
Technical specifications
| No. of cavities | 15 |
| Color | Purple |
| Connector Style | Plug |
| Holds Pin/Socket | Socket |
| Insulation | (#12).097-.158 [2.46-4.01], (#16).053-.120 [1.35-3.05] |
| keyed | Yes, A key |
| Material | Plastic |
| Modification | Enhanced Seal Retention, End Cap |
| Series | DT Series |
| Shape | Rectangular |
| Wire Size | 10, 12, 14, 16, 18, 20 |
Required components
Must be ordered together with the housing.
N/A
Accessories
Drawings & CAD files
About the manufacturer
DEUTSCHDEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
