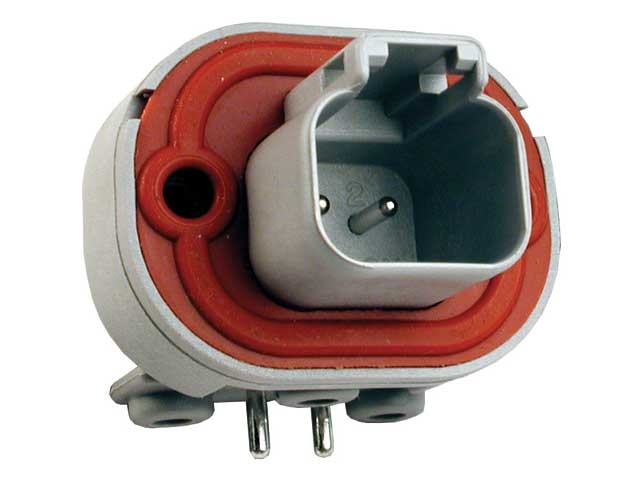

DT13-2P
DT132-wayPlugDeutsch

DT13-2P

DT13 Flanged Series · 2-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Contact size
16
Current rating
13
Wire size (AWG)
16
Color
Gray
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
Part NumberDT13-2P
Flange/In-line/PCB MountPCB
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Special Features90 degrees molded-in pins
Wire Size16
ColorGray

Mating connectors

DT06-2S
DT06-2S
DT06-2S-C015
DT06-2S-C015
DT06-2S-E003
DT06-2S-E003
DT06-2S-E008
DT06-2S-E008

Drawings & CAD files

pdfProduct Drawing (PDF)
147.57 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
