DT06-2S-C015
DT2-waySocketDeutsch

DT06-2S-C015

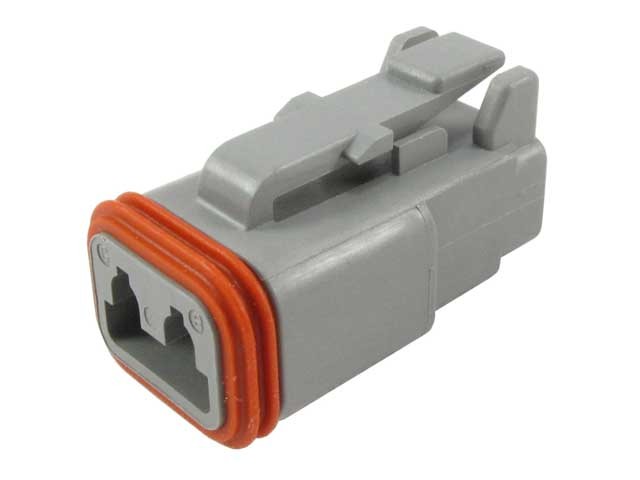

DT Series · 2-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
2
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Gray
Required wedgelock
W2S
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities2
Part NumberDT06-2S-C015
Flange/In-line/PCB MountIn-line
ModificationReduced Dia. Seals
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StylePlug
Holds Pin/SocketSocket
Insulation.053-.120 [1.35-3.05]
Wire Size14, 16, 18, 20
Required WedgelockW2S
ColorGray

Compatible contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

DT04-2P-C015
DT04-2P-C015
DT04-2P-CE01
DT04-2P-CE01
DT04-2P-CE04
DT04-2P-CE04

Required components

Must be ordered together with the housing.

W2S
W2S
W2SA
W2SA
W2SB
W2SB
W2SC
W2SC
W2SD
W2SD

Accessories

1011-227-0205
1011-227-0205
1011-228-0205
1011-228-0205
1011-344-0205
1011-344-0205
DT2S-BT
DT2S-BT

Drawings & CAD files

igesCAD Files 3D Model (IGES Version 99 ZIP)
205.33 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
99.21 KB
pdfCustomer View Model (PDF)
223.21 KB
pdfProduct Drawing (PDF)
136.53 KB
tifProduct Drawing (TIF)
135.62 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
49.66 KB
