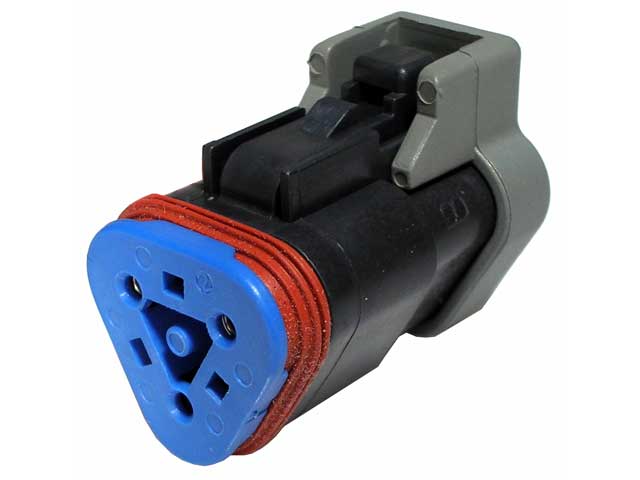

DT06-3S-PE01
DT3-waySocketDeutsch

DT06-3S-PE01

DT Series · 3-way · Socket · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Series
DT Series
Type
Socket
Current rating
13
Color
Gray
Request a quoteCall usEmail

Technical specifications

No. of cavities3
ColorGray
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
keyedYes, J1939
MaterialPlastic
ModificationTerminating Resistor, Gold Sockets, End Cap, J1939
SeriesDT Series
ShapeTriangular

Mating connectors

DT04-3P
DT04-3P
DT04-3P-E003
DT04-3P-E003
DT04-3P-E008
DT04-3P-E008

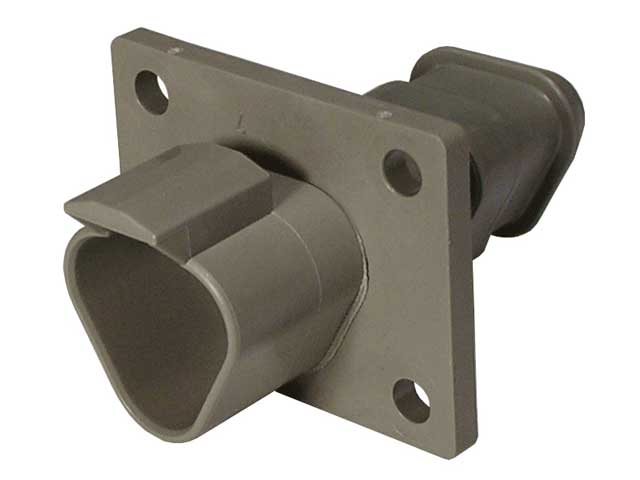

DT04-3P-LE08
DT04-3P-LE08

Required components

Must be ordered together with the housing.

Included

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
