DT04-3P-E003
DT3-wayPlugDeutsch

DT04-3P-E003

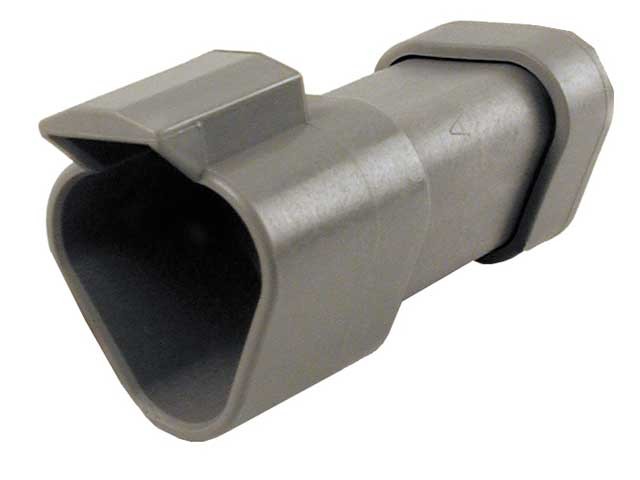

DT Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Gray
Required wedgelock
W3P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities3
Part NumberDT04-3P-E003
Flange/In-line/PCB MountIn-line
ModificationEnd Cap
Current Rating13
Contact Size16
ShapeTriangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW3P
ColorGray

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-3S
DT06-3S
DT06-3S-E003
DT06-3S-E003
DT06-3S-E008
DT06-3S-E008
DT06-3S-EP05
DT06-3S-EP05

Required components

Must be ordered together with the housing.

W3P
W3P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1
DT3P-DC
DT3P-DC

Drawings & CAD files

pdfProduct Drawing (PDF)
48.82 KB
tifProduct Drawing (TIF)
47.91 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
29.72 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
267.17 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
114.59 KB
pdfCustomer View Model (PDF)
200.05 KB
