DT04-4P-LE13
DT4-wayPlugDeutsch

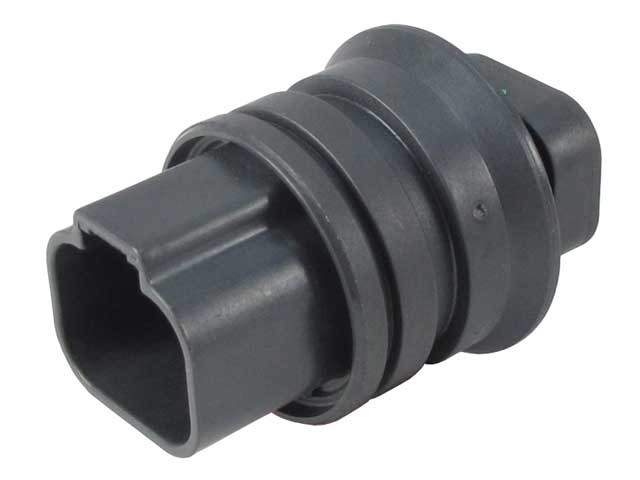

DT04-4P-LE13

DT Series · 4-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
4
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Black
Required wedgelock
W4P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities4
Part NumberDT04-4P-LE13
Flange/In-line/PCB MountFlange
ModificationEnd Cap, Round Housing
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW4P
ColorBlack

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-4S-E004
DT06-4S-E004
DT06-4S-E005
DT06-4S-E005
DT06-4S-EP06
DT06-4S-EP06
DT06-4S-P012
DT06-4S-P012

Required components

Must be ordered together with the housing.

W4P
W4P

Accessories

DT-RT1
DT-RT1
DT4P-DC
DT4P-DC

Drawings & CAD files

pdfProduct Drawing (PDF)
211.59 KB
tifProduct Drawing (TIF)
75.64 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
38.72 KB
igesCAD Files 3D Model (IGES Version 99 ZIP)
303.83 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
119.68 KB
pdfCustomer View Model (PDF)
301.71 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
