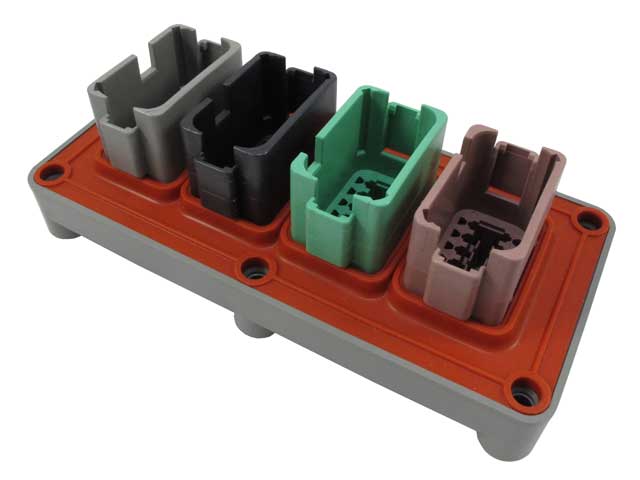

DT04-48P-B016
DT48-wayPlugDeutsch

DT04-48P-B016

DT Series · 48-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
48
Contact size
16
Series
DT Series
Type
Plug
Current rating
13
Wire size
14, 16, 18, 20
Color
Gray
Request a quoteCall usEmail

Technical specifications

ColorGray
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
keyedYes, Enhanced A, B, C, D key
MaterialPlastic
ModificationEnhanced A, B, C, D Key
SeriesDT Series
ShapeRectangular
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-12SA-P012
DT06-12SA-P012
DT06-12SB-P012
DT06-12SB-P012
DT06-12SC-P012
DT06-12SC-P012
DT06-12SD-P012
DT06-12SD-P012

Required components

Must be ordered together with the housing.

W12P
W12P
(4) W12P

Accessories

DT-RT1
DT-RT1
DT12P-DC
DT12P-DC

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
