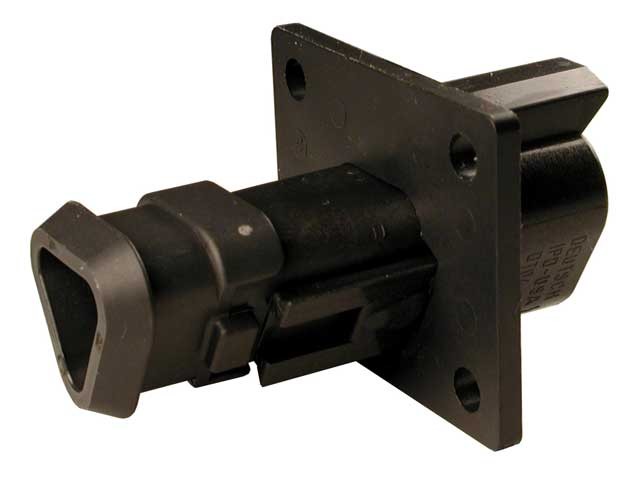

DT04-3P-LE12
DT3-wayPlugDeutsch

DT04-3P-LE12

DT Series · 3-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
3
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Black
Required wedgelock
W3P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities3
Part NumberDT04-3P-LE12
Flange/In-line/PCB MountFlange
ModificationWelded Flange, Shrink Boot Adapter
Current Rating13
Contact Size16
ShapeTriangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW3P
ColorBlack

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-3S-E004
DT06-3S-E004
DT06-3S-EP06
DT06-3S-EP06
DT06-3S-EP11
DT06-3S-EP11
DT06-3S-P012
DT06-3S-P012

Required components

Must be ordered together with the housing.

W3P
W3P

Accessories

DT-RT1
DT-RT1
DT3P-DC
DT3P-DC
SSK03 Rubber boot
SSK03 Rubber boot

Drawings & CAD files

tifProduct Drawing (TIF)
71.01 KB
pdfProduct Drawing (PDF)
71.92 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
