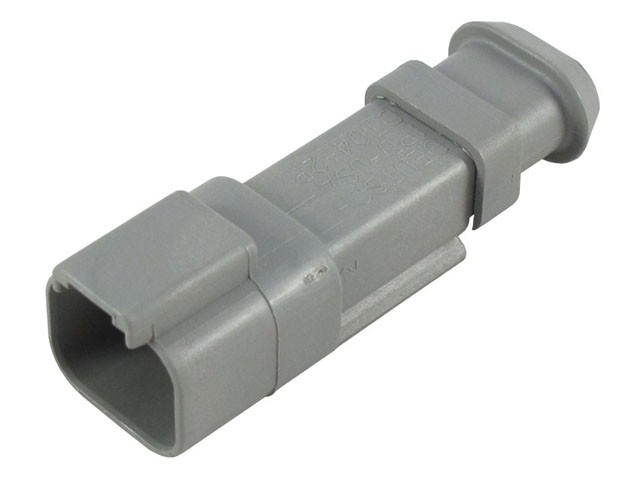

DT04-2P-E008
DT2-wayPlugDeutsch

DT04-2P-E008

DT Series · 2-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
2
Contact size
16
Current rating
13
Wire size (AWG)
14, 16, 18, 20
Color
Gray
Required wedgelock
W2P
Request a quoteCall usEmail

Technical specifications

SeriesDT Series
BrandDeutsch
No. of cavities2
Part NumberDT04-2P-E008
Flange/In-line/PCB MountIn-line
ModificationShrink Boot Adapter
Current Rating13
Contact Size16
ShapeRectangular
MaterialPlastic
Connector StyleReceptacle
Holds Pin/SocketPin
Insulation.088-.145 [2.24-3.68]
Wire Size14, 16, 18, 20
Required WedgelockW2P
ColorGray

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

DT06-2S
DT06-2S
DT06-2S-E003
DT06-2S-E003
DT06-2S-E008
DT06-2S-E008

Required components

Must be ordered together with the housing.

W2P
W2P

Accessories

1011-026-0205
1011-026-0205
1027-003-1200
1027-003-1200
DT-RT1
DT-RT1
SSK02 Rubber boot
SSK02 Rubber boot

Drawings & CAD files

igesCAD Files 3D Model (IGES Version 99 ZIP)
220.78 KB
stepCAD Files 3D Model (STEP Version 99 ZIP)
106.18 KB
pdfCustomer View Model (PDF)
193.60 KB
pdfProduct Drawing (PDF)
40.02 KB
tifProduct Drawing (TIF)
39.11 KB
dxfCAD Files 2D Drawing (DXF Version 99 ZIP)
31.18 KB

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
