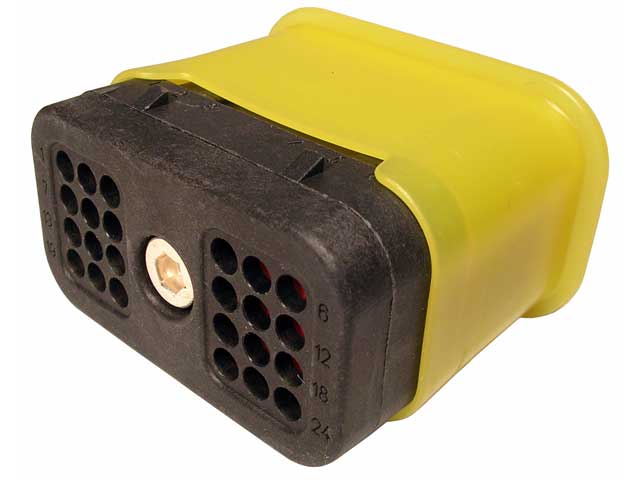

DRC26-24SA-P019
DRC24-waySocketDeutsch

DRC26-24SA-P019

DRC · 24-way · Socket · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
24
Contact size
20
Series
DRC
Type
Socket
Current rating
7.5
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities24
ColorBlack
Connector StylePlug
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.040-.095 [1.02-2.41]
keyedYes, A key
MaterialPlastic
ModificationZinc Chromate Screw Retaining Clip
SeriesDRC Series
ShapeRectangular
Wire Size14, 16, 18, 20
