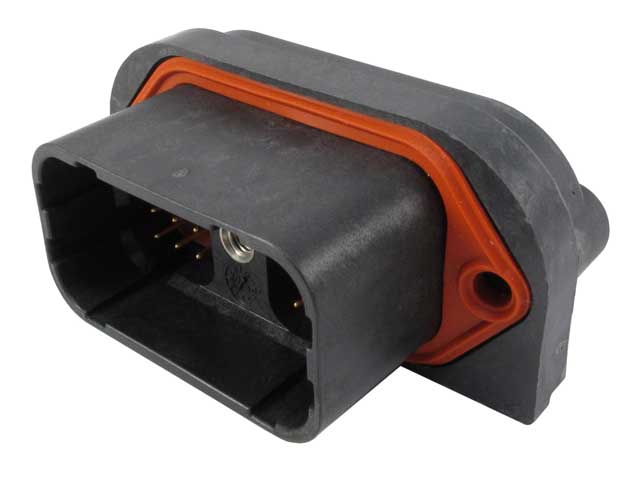

DRC23-24PA

Outlet stock, €19.56 per unit

10 in stock at our Keila warehouse, price for 1 to 10 pieces, while quantities last. Browse the Components Outlet

1
DRC24-wayPlugDeutsch

Deutsch DRC23-24PA, DRC Series, 24-Way Plug, connector, for wire processing

DRC Series · 24-way · Plug · Size 20 contacts

Generally high availability — ask for current lead time
Cavities
24
Contact size
20
Series
DRC Series
Type
Plug
Current rating
7.5
Wire size
20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities24
ColorBlack
Connector StyleReceptacle
Contact Size20
Current Rating7.5
Flange/In-line/PCB MountPCB
Holds Pin/SocketPin
keyedYes, A key
MaterialPlastic
SeriesDRC Series
ShapeRectangular
Special Features90 degrees molded pins
Wire Size20

Mating connectors

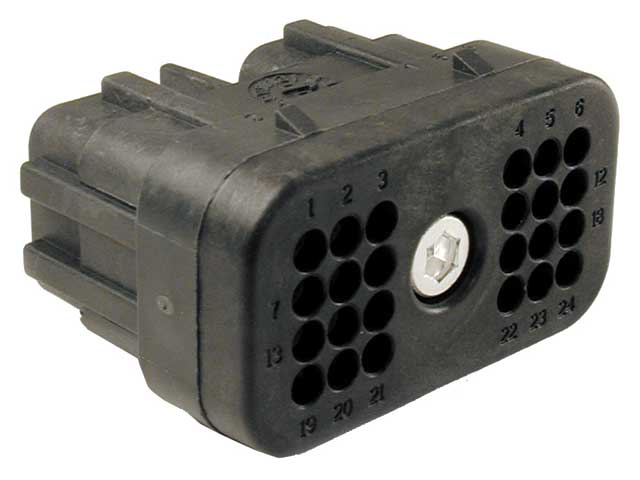

DRC26-24SA
DRC26-24SA

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)
