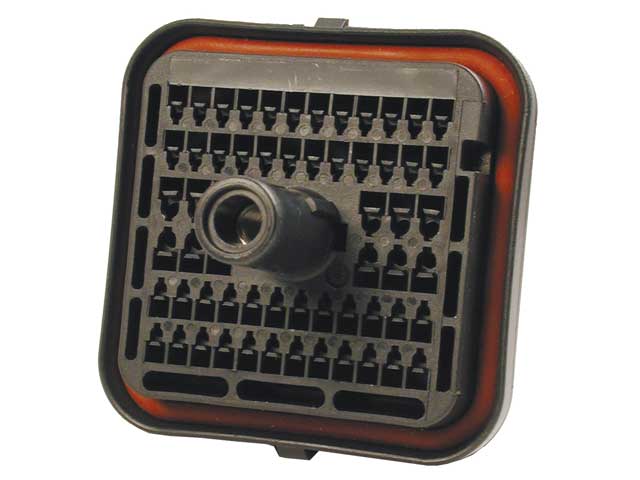

DRB12-60PAE-L018
DRB60-wayPlugDeutsch

DRB12-60PAE-L018

DRB · 60-way · Plug

Generally high availability — ask for current lead time
Cavities
60
Series
DRB
Type
Plug
Wire size
14, 16, 18, 20, 22
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities60
ColorBlack
Connector StyleReceptacle
Flange/In-line/PCB MountFlange
Holds Pin/SocketPin
Insulation(#16).053-.120 [1.35-3.05], (#20).040-.095 [1.02-2.41]
keyedYes, A key
MaterialPlastic
ModificationWire Router
Seal SizeE seal
SeriesDRB Series
ShapeSquare
Wire Size14, 16, 18, 20, 22

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-20141
0460-202-20141
1060-16-0122
1060-16-0122
1060-20-0122
1060-20-0122

Mating connectors

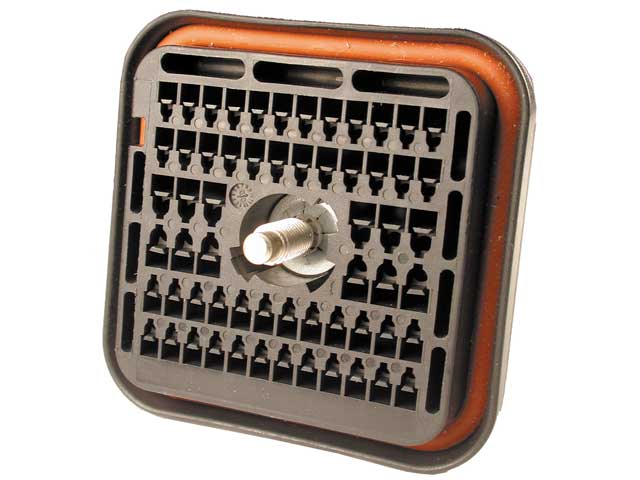

DRB16-60SAE-L018
DRB16-60SAE-L018

Required components

Must be ordered together with the housing.

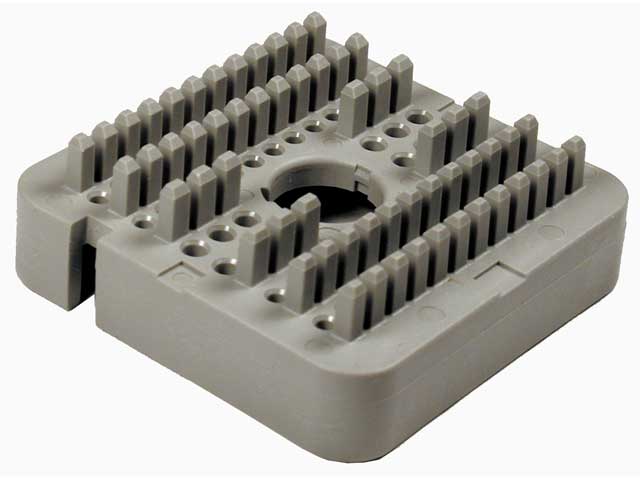

WB-60PA
WB-60PA
WB-60PA
WB-60PA

Accessories

DRB48-60-BT
DRB48-60-BT
DRBF-2A
DRBF-2A
DRBF-3AB
DRBF-3AB
DT-RT1
DT-RT1

Drawings & CAD files

pdfCustomer View Model (PDF)
pdfProduct Drawing (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
