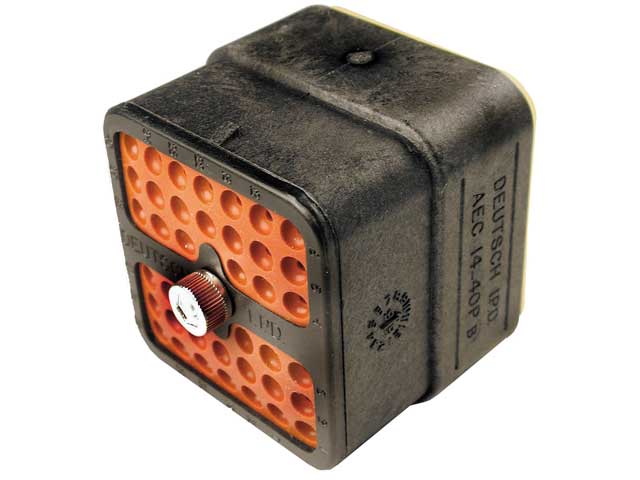

AEC14-40PB
AEC40-wayPlugDeutsch

AEC14-40PB

AEC · 40-way · Plug · Size 16 contacts

Generally high availability — ask for current lead time
Cavities
40
Contact size
16
Series
AEC
Type
Plug
Current rating
13
Wire size
14, 16, 18, 20
Color
Black
Request a quoteCall usEmail

Technical specifications

No. of cavities40
ColorBlack
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketPin
Insulation.100-.134 [2.54-3.40]
keyedYes, B key
MaterialPlastic
SeriesAEC Series
ShapeSquare
Wire Size14, 16, 18, 20

Compatible contacts

0460-202-16141
0460-202-16141
0460-202-1631
0460-202-1631
1060-16-0122
1060-16-0122
1060-16-0144
1060-16-0144

Mating connectors

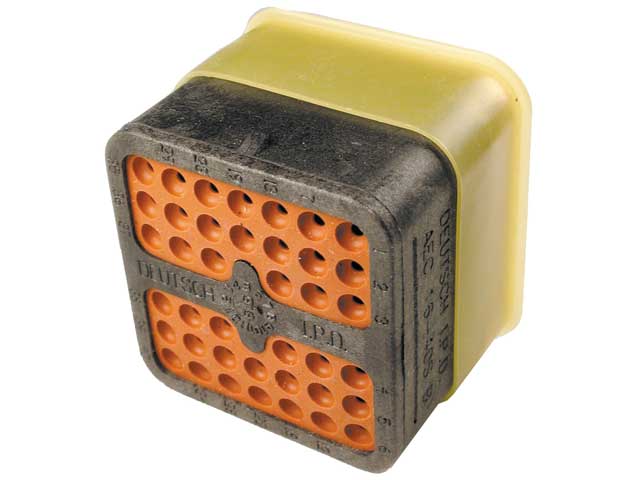

AEC16-40SB
AEC16-40SB

Accessories

0411-310-1605
0411-310-1605

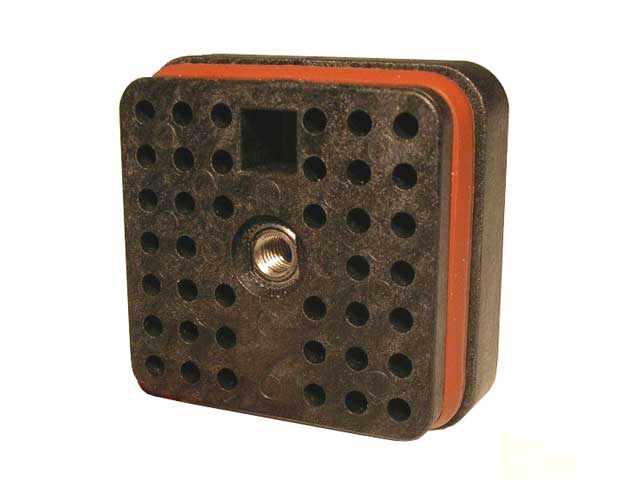

0504-002-4001
0504-002-4001
0515-009-4005
0515-009-4005

Drawings & CAD files

pdfCustomer View Model (PDF)
zipCAD Files 2D Drawing (DXF Version 99 ZIP)
zipCAD Files 3D Model (IGES Version 99 ZIP)
zipCAD Files 3D Model (STEP Version 99 ZIP)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
