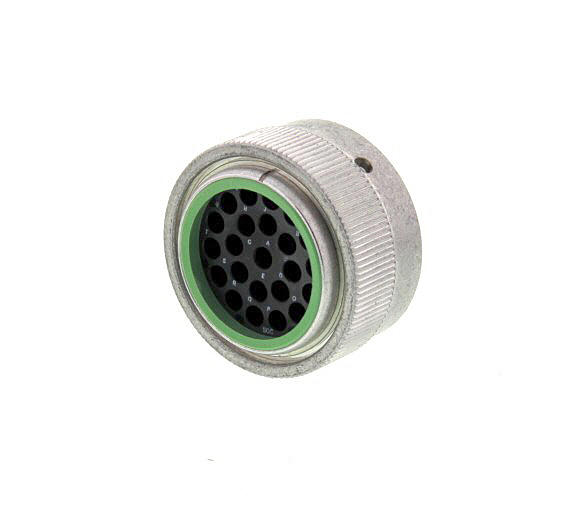

HDN36-24-23SN-C003
DeutschCatalogue item

HDN36-24-23SN-C003

Generally high availability — ask for current lead time
Color
Silver
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Request a quoteCall usEmail

Additional information

ColorSilver
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesNon-env., std. insert marking identification
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Drawings

Product Drawing (PDF)ENG_CD_HDN36-24-23SN-C003_-.pdfProduct Drawing (TIF)ENG_CD_HDN36-24-23SN-C003_-.tif
