HD36-24-23SN-J001
DeutschCatalogue item

HD36-24-23SN-J001

Generally high availability — ask for current lead time
Color
Silver
Connector Style
Plug
Contact Size
16
Current Rating
13
Flange/In-line/PCB Mount
In-line
Holds Pin/Socket
Socket
Request a quoteCall usEmail

Additional information

ColorSilver
Connector StylePlug
Contact Size16
Current Rating13
Flange/In-line/PCB MountIn-line
Holds Pin/SocketSocket
Insulation.100-.134 [2.54-3.40]
keyedNo
MaterialAluminum
Seal SizeN seal
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesReverse insert marking identification, for HD34H-24-23PP
Wire Size14, 16, 18, 20

Contacts

0462-201-16141
0462-201-16141
0462-201-1631
0462-201-1631
1062-16-0122
1062-16-0122
1062-16-0144
1062-16-0144

Mating connectors

HD34H-24-23PP
HD34H-24-23PP

Accessories

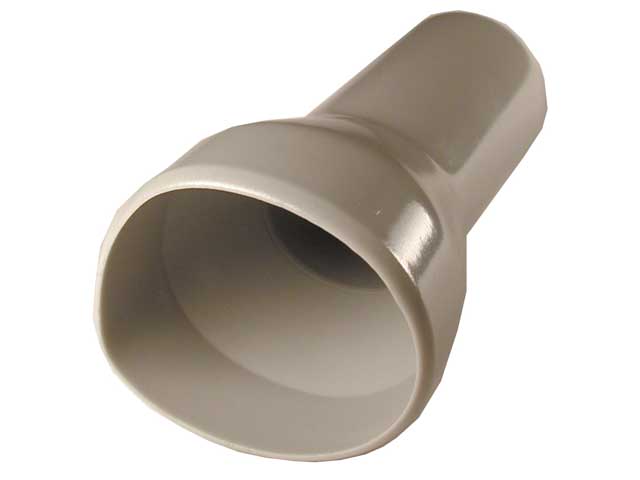

HD30-24BT
HD30-24BT
HDC34-24
HDC34-24

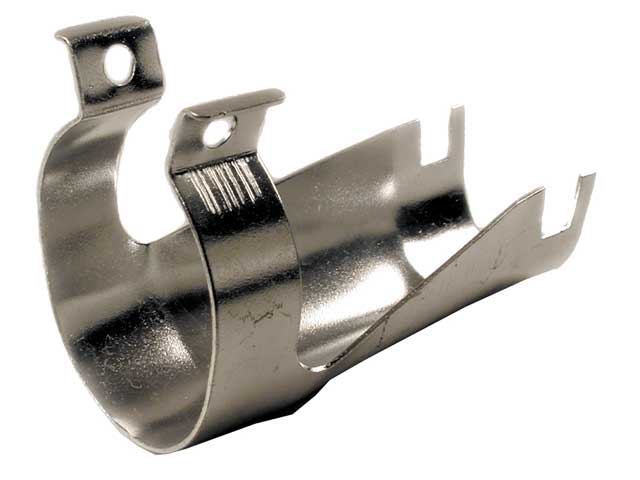

WHDS-24-1
WHDS-24-1

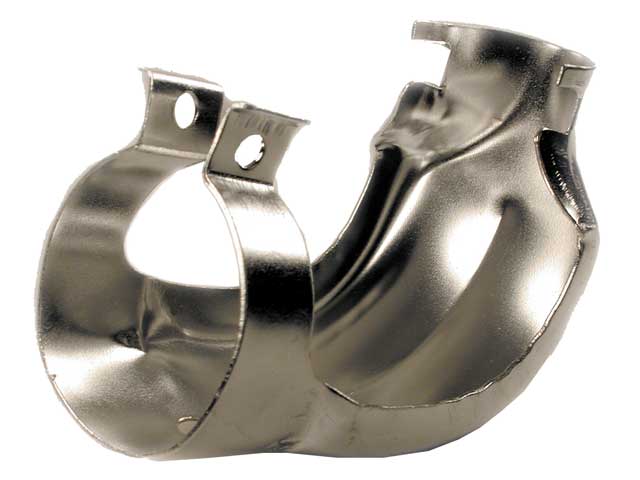

WHDS-24-2
WHDS-24-2

Drawings

Customer View Model (PDF)3D_CVM_CVM_HD36-24-23SN-J001_99.pdfCAD Files 2D Drawing (DXF Version 99 ZIP)ENG_CVM_CVM_HD36-24-23SN-J001_99.2d_dxf.zipCAD Files 3D Model (IGES Version 99 ZIP)ENG_CVM_CVM_HD36-24-23SN-J001_99.3d_igs.zipCAD Files 3D Model (STEP Version 99 ZIP)ENG_CVM_CVM_HD36-24-23SN-J001_99.3d_stp.zip
