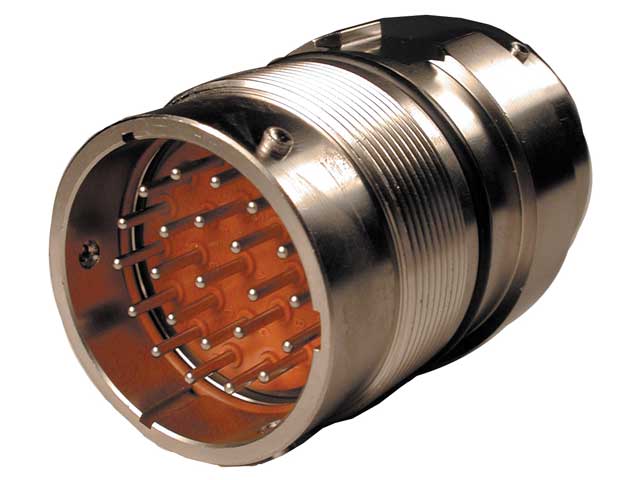

HD34H-24-23PP
HDDeutsch

HD34H-24-23PP

HD · Size 16 contacts

Generally high availability — ask for current lead time
Contact size
16
Series
HD
Current rating
13
Wire size
16
Color
Silver
Request a quoteCall usEmail

Technical specifications

ColorSilver
Connector StyleReceptacle
Contact Size16
Current Rating13
Flange/In-line/PCB MountFlange
keyedNo
MaterialSteel
SeriesHD30 Series
ShapeCircular
Shell Size24 shell
Special FeaturesFeed-thru hermetic
Wire Size16

Mating connectors

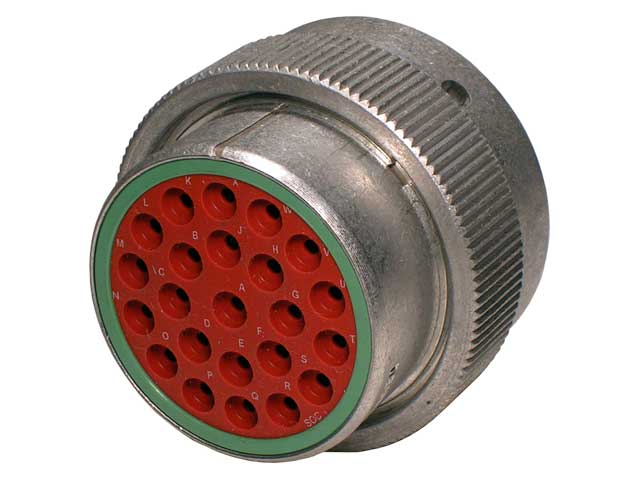

HD36-24-23SN-J001
HD36-24-23SN-J001

Drawings & CAD files

pdfProduct Drawing (PDF)
tifProduct Drawing (TIF)

About the manufacturer

DEUTSCH

DEUTSCH is TE Connectivity's family of sealed connectors, the global benchmark for harsh-environment electrical connections. The DT, DTM, DTP, and AT series are specified in agriculture, construction, military, marine, and heavy automotive applications where vibration, moisture, and contamination resistance are critical.
